Prepress proofing digital printer - Single head printing machine

Single head prepress proofing digital printer - Foshan Tinglong Digital supplies 8-color digital printing machines, digital printer equipment, and small prepress proofing digital printer. This plateless digital printing machine has the advantages of high precision, small footprint, and efficient printing. It is used for digital sampling of packaging boxes, gift boxes, handbags.
* Number of nozzles: 1 x Epson i3200-A1
* Suitable media: Common paper materials for packaging and printing, such as art paper, duplex board paper, kraft paper, etc
* Application scenario: High precision Prepress proofing and sampling
* Suitable for users: traditional printing factories, color printing factories, entrepreneurs, studios
Introduction Technical Specifications Printing Effect

Digital proofing is the process of using digital printing machines to directly output designed electronic drafts as samples. The advantage lies in fast response speed, low cost, and the ability to quickly confirm the initial effect of materials, such as packaging and printing color boxes, posters, brochures, and other products.

In the field of packaging and color box printing, pre press proofing is the bridge connecting design and production. The traditional sampling method is gradually unable to meet the needs of modern printing enterprises for fast response and accurate restoration due to high equipment costs, complex operations, and low efficiency. Single head digital printers, with their advantages of high precision, high efficiency, and low cost, are becoming the new favorite of packaging and color box printing enterprises. The single head pre press proofing machine is capable of playing the core equipment role in packaging color box pre press proofing in the current market with increasing demand for small batches.

Compared to traditional printing proofing, it is somewhat limited in terms of precision and color reproduction due to the constraints of device color gamut. However, as it significantly reduces the time cost of proofing, prepress digital proofing machines remain an ideal choice for small-batch production. Fast and cost-effective, they eliminate the need for plate making, enable complex and personalized pattern proofing, and greatly expedite the entire proofing process.



Technical Specifications
Technical Specifications
Machine modelSingle head digital printing machine
Print speed3~6 square meters per hour
Number of nozzles1 x Epson i3200-A1
SoftwareneoStampa、Maintop(optional)
Printing Accuracy720x1800 dpi
Device dimensions2460mm x 800mm x 1280mm (LWH)
Equipment weight180KG
Printing formatMaximum printing width 1300mm
MaterialsArt paper, white back / gray back duplex board paper, kraft paper, Tyvek, offset paper, etc,.
Material weight30~450 grams
Ink typeEnvironmentally friendly water-based pigment ink / 8 colors 、12 colors
Image formatPDF/TIFF/JPEG/EFS/PSD
Nozzle cleaningAutomatic cleaning
Print InterfaceGigabit Ethernet port
Power supportAC 220V±10%,50Hz/60Hz

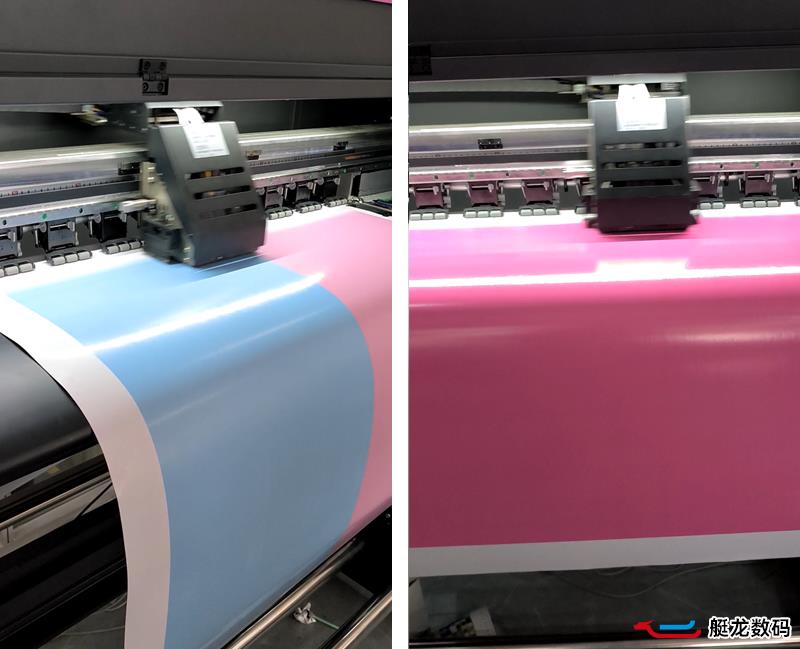

Printing Effect
