8 heads color boxes digital printing machine - high-speed digital printing machine | Guangzhou Tinglong Digital

8 heads color boxes digital printing machine - high-speed digital printing machine

8 heads color boxes digital printing machine - Guangzhou Tinglong Digital specializes in the research and development of high-speed digital printing machines. This product is equipped with 8 Epson i3200-A1 nozzles. A plateless digital printing machine that combines precision and printing speed.
* Number of nozzles: 8 x Epson i3200-A1
* Suitable media: Common paper materials for packaging and printing, such as art paper, duplex board paper, kraft paper, etc
* Application scenario: Small batch printing production
* Suitable for users: traditional printing factories, color printing factories
Introduction Technical Specifications Printing Effect

In the current fiercely competitive and diverse market environment, the demand for small batch packaging color boxes is showing an increasing trend. Many brands have launched small batch and personalized packaging products to meet the needs of different scenarios and marketing activities. Under this trend, the number of small and scattered orders printed in multiple batches has sharply increased in the business undertaken by color printing factories. Although the scale of individual orders is relatively small, the total amount accumulated is also considerable, posing new challenges to the production capacity of color printing factories.

Faced with such a huge demand for printing small and scattered orders, digital printing technology has become the first choice for color printing factories due to its advantages of flexibility, efficiency, and no need for plate making. However, with the continuous increase in business volume, the existing digital printing equipment capacity is gradually unable to meet production needs, and speed up has become an urgent problem to be solved.

In this context, high-speed multi head digital printing machines have emerged, designed specifically to meet such high-capacity demands. Among them, the eight head digital printing machine of Dinglong Digital performs particularly well. The machine is equipped with 8 Epson i3200-A1 print heads, an advanced configuration that ensures high printing accuracy while increasing production speed to 50 square meters per hour. Whether it's delicate patterns, rich colors, or complex text, they can all be presented clearly and accurately, truly achieving a perfect combination of high quality and high efficiency.

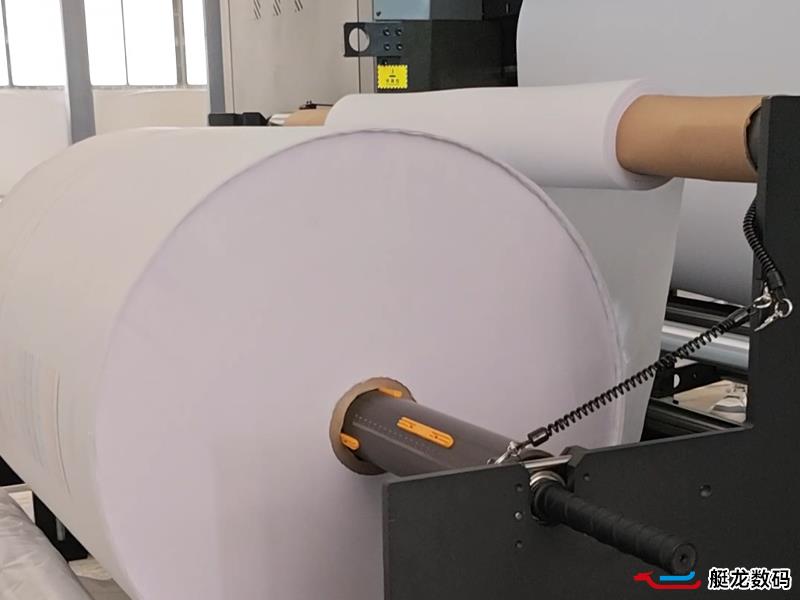

Not only that, the Guangzhou Tinglong Digital 8 Heads Printing Machine is also equipped with a heavy-duty mother roll paper feeding system. This system greatly reduces the time and frequency of material replacement during the printing process, allowing busy daily printing work to maintain continuity, avoiding the problem of low efficiency caused by frequent downtime and material replacement, further improving overall production capacity, and providing strong support for color printing factories to meet the high production capacity demand of small batch packaging color printing.



Technical Specifications
Technical Specifications
Machine model8 heads digital printing machine
Print speed30-50 square meters per hour
Number of nozzles8 x Epson i3200-A1
SoftwareneoStampa、Maintop、Photoprint(optional)
Printing AccuracyDefault 720x1800 dpi (adjustable up to 720x3600dpi)
Device dimensions2450mm x 900mm x 1400mm(LWH)
Equipment weight1600KG
Printing formatwidth 1200mm * infinite length
MaterialsArt paper, white back / gray back duplex board paper, kraft paper, Tyvek, offset paper, etc,.
Material weight30~450 grams
Ink typeEnvironmentally friendly water-based pigment ink
Image formatPDF/TIFF/JPEG/EFS/PSD
Nozzle cleaningAutomatic cleaning
Print InterfaceGigabit Ethernet port
Power supportAC 220V±10%,50Hz/60Hz

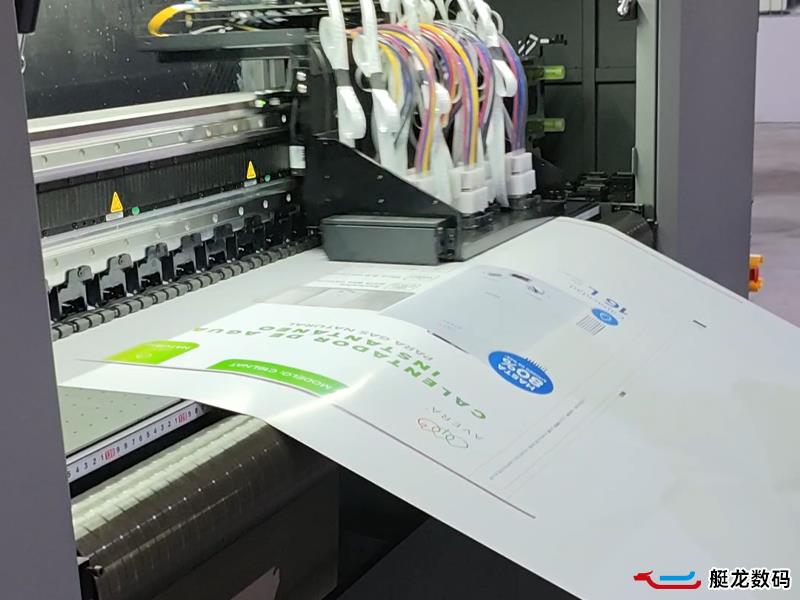

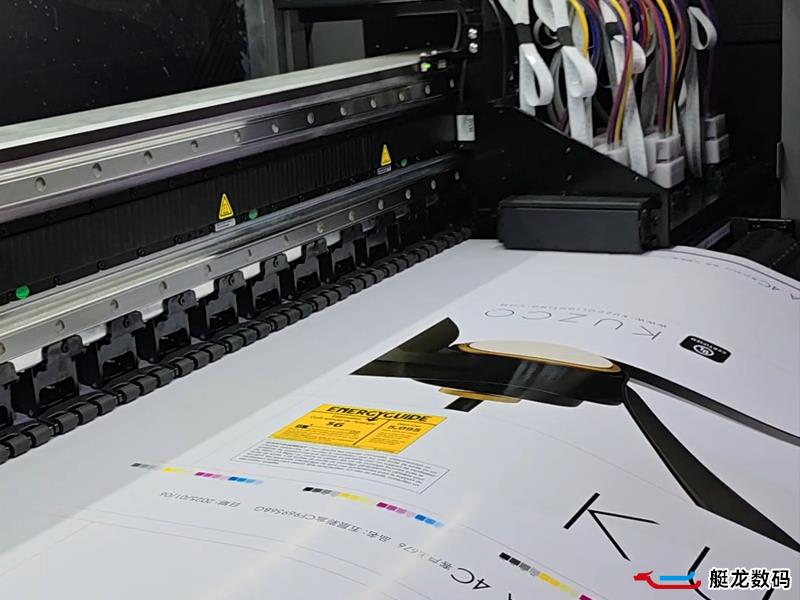

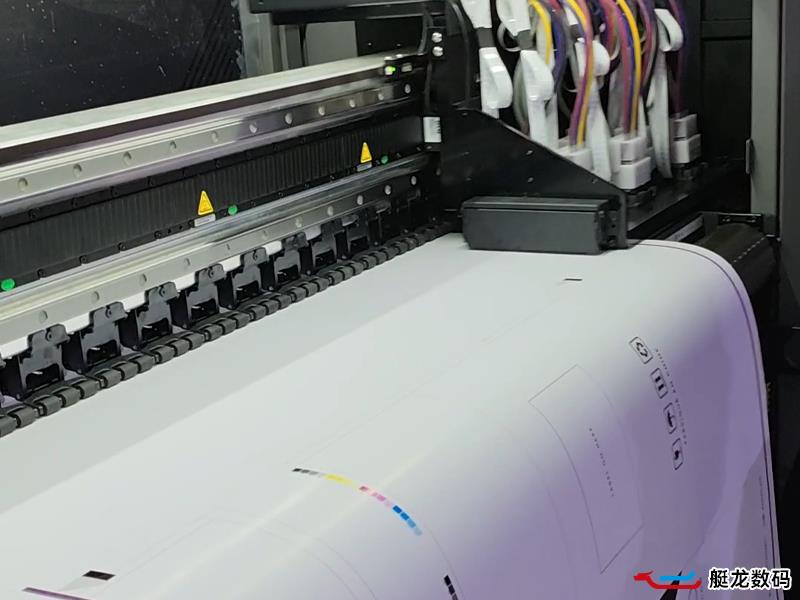

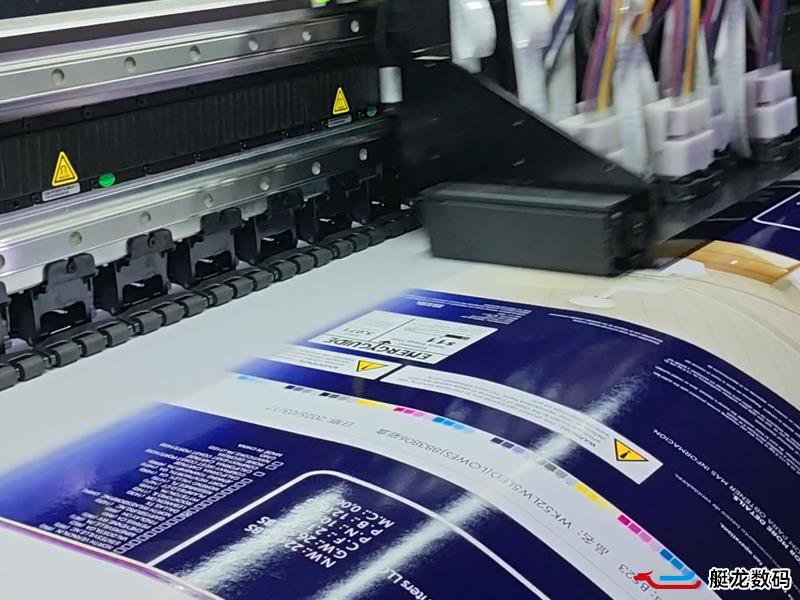

Printing Effect
