roll to roll UV digital printer

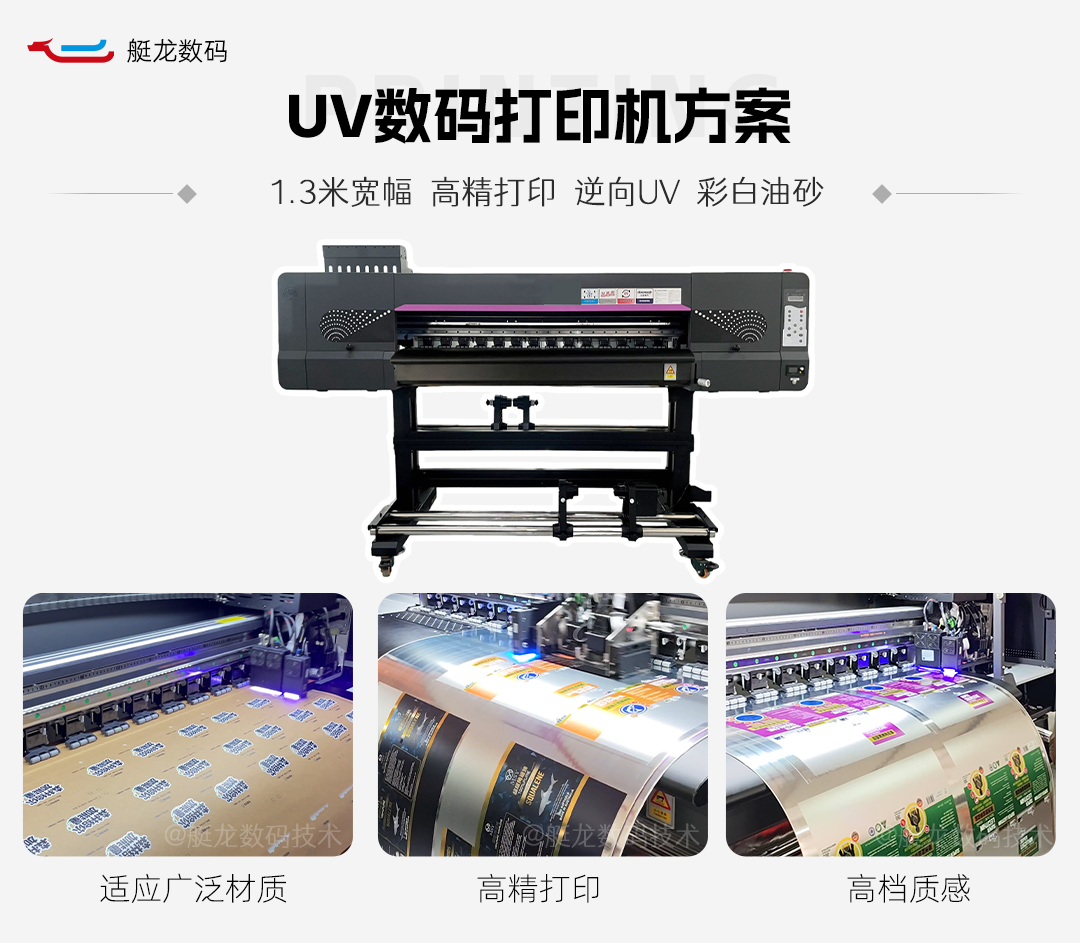

The 2 heads UV digital printer uses two Epson i3200-U1 nozzles. Compared to single head printers, it has faster printing speed and no worse accuracy, making it suitable for small batch printing production and pre press sampling. It can be said to be an ideal choice that combines high precision and high efficiency, making it very suitable for color printing factories to produce small batches of color boxes.

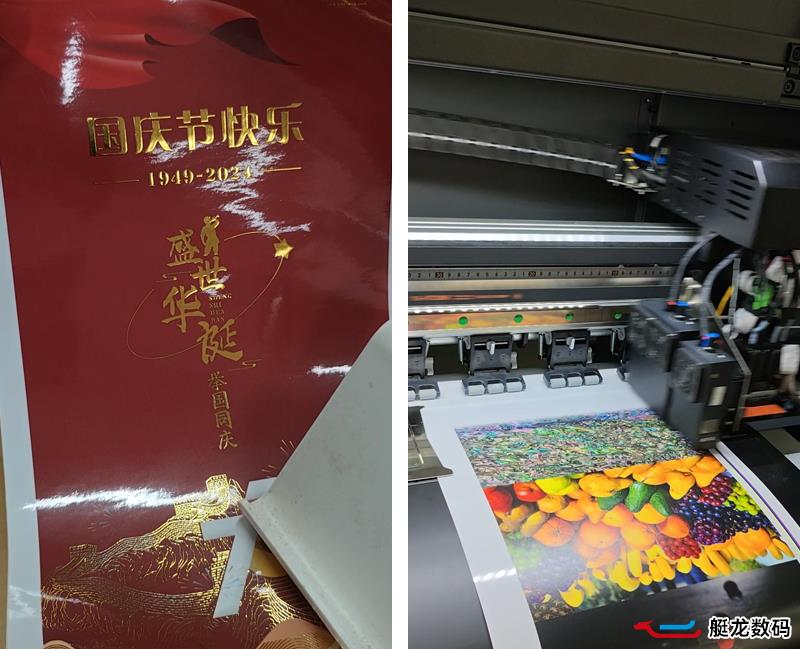

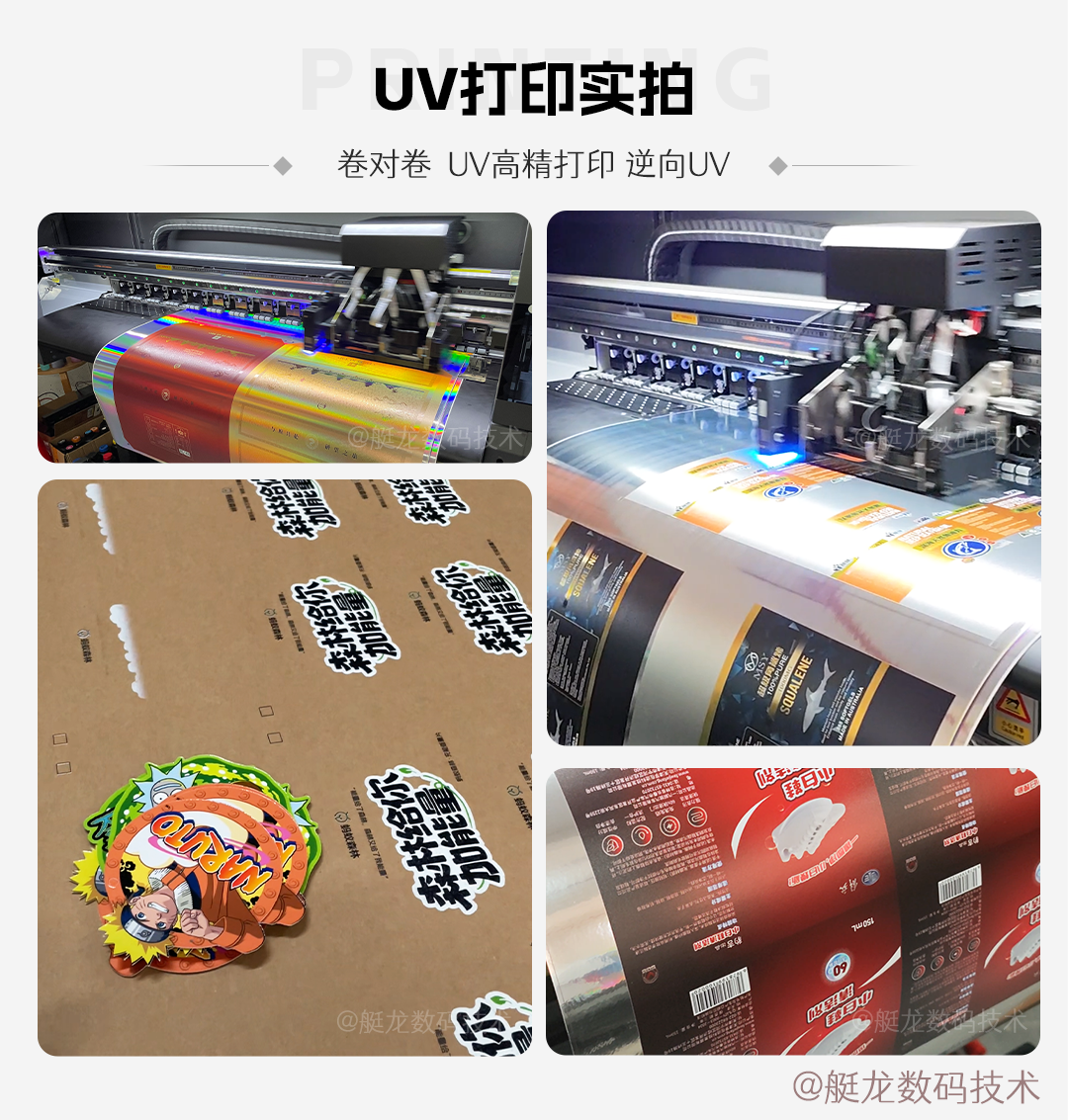

This model belongs to the roll to roll printer, mainly printing roll media such as art paper, white back or gray back duplex board paper, gold and silver cardboard, laser card, PVC/PE film, and a wide range of media. UV ink is instantly cured by LED ultraviolet lamps, which can achieve instant drying. Reverse sanding, hot stamping and other processes also greatly enhance the eye-catching effect of product packaging, showcasing a luxurious and high-end texture, and overall increasing the added value of the product.
| Technical Specifications | |
|---|---|
| Machine model | 2 heads UV digital printer |
| Print speed | 3 - 6 square meters per hour |
| Number of nozzles | 2 x Epson i3200-U1 |
| Software | neoStampa、Maintop、Photoprint(optional) |
| Printing Accuracy | Default 720x1800 dpi (adjustable up to 720x3600dpi) |
| Device dimensions | 2460mm x 850mm x 1540mm (LWH) |
| Equipment weight | 180KG |
| Printing format | width 1200mm * infinite length |
| Materials | Art paper, duplex board paper, gold and silver cardboard, laser card, PVC/PE film, etc,. |
| Material weight | 30~450 grams |
| Drying system | UV curing lamp circulation system |
| Ink type | UV ink |
| Image format | PDF/TIFF/JPEG/EFS/PSD |
| Nozzle cleaning | Automatic cleaning |
| Print Interface | Gigabit Ethernet port |
| Operating environment | Temperature: 20-28 ℃ / Humidity: 40-80% |
| Power support | AC 220V±10%，50Hz/60Hz，10A |
