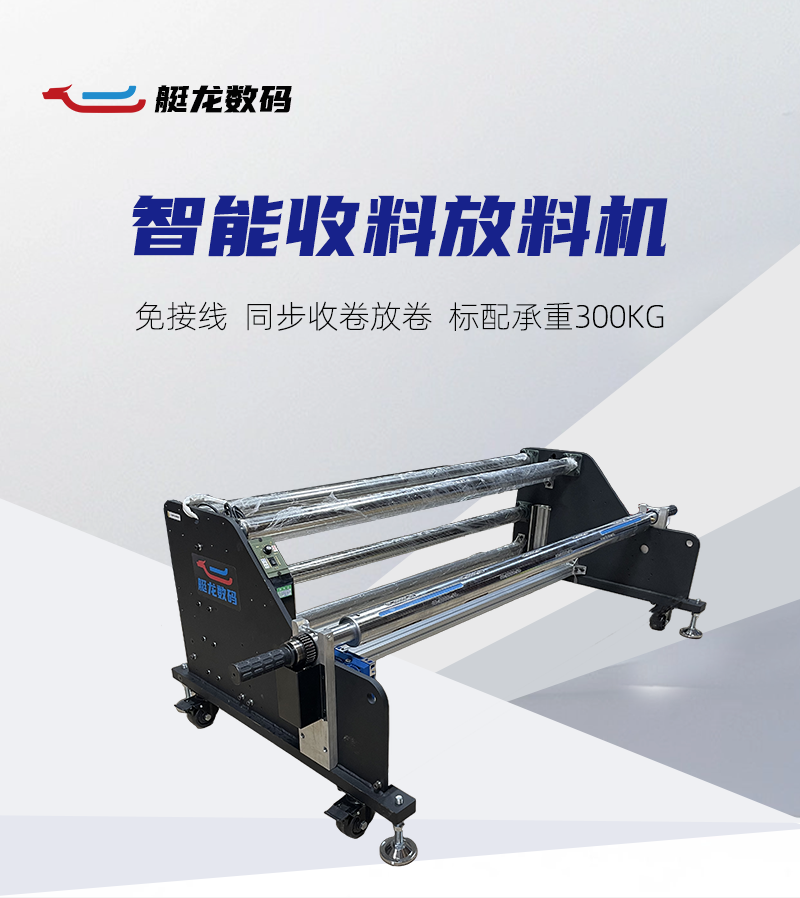

自动感应导纸、正反转、调速、免接线插电即用

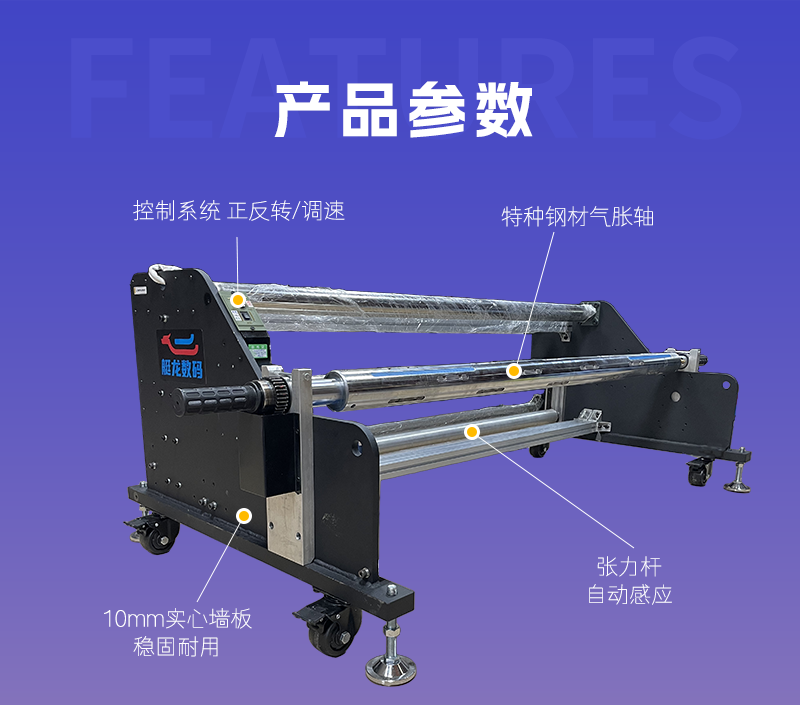

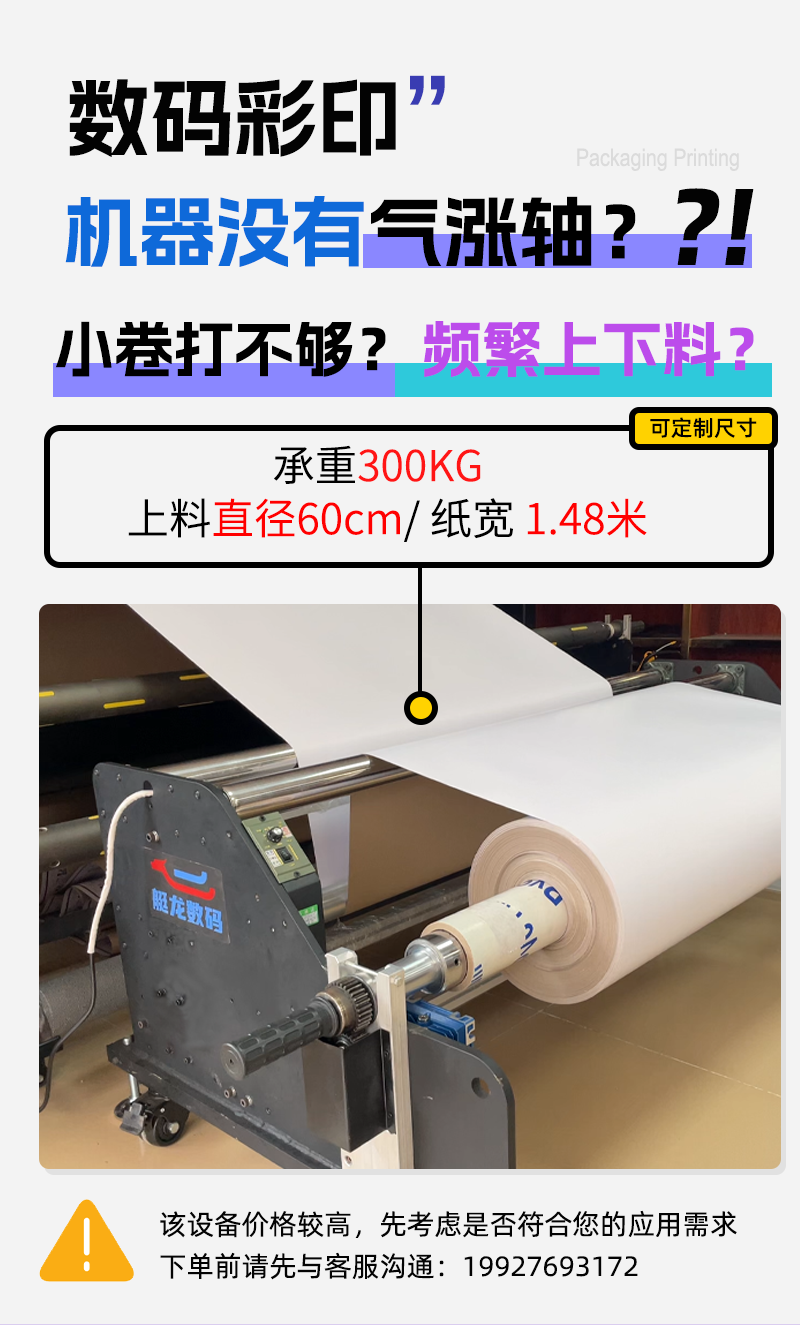

这款智能两用放收料架，可灵活切换放料、收料两种使用模式。设备最大卷料直径可达 600mm，额定承重 300kg。相比常规大母卷放料架，本机轻量化设计更灵活，同时承袭同款坚固结构，性能稳定耐用。设备墙板选用 10mm 厚实心钢材打造，整体扎实稳固；搭配高规格特种钢气涨轴，直线度优异，抗压、抗弯性能出众，可满足长时间连续生产作业需求。
什么机型可以使用？
卷对卷小批量数码彩印机、数码印花机、裁切机裁断机、Epson 9580、9180等打印机，市面上只要是上卷材的数码彩印机都能使用，不限定品牌，类似国产机、爱普生原装机等，甚至其他非数码打印领域，需求符合，也可以使用这款放卷收卷机设备。

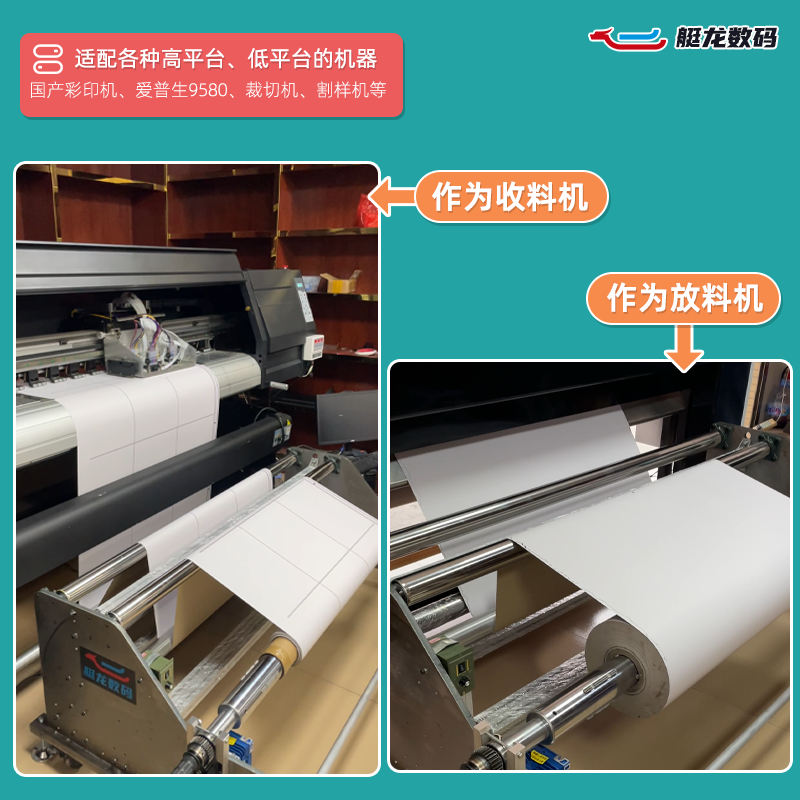

正转反转 可作为放卷、收卷使用

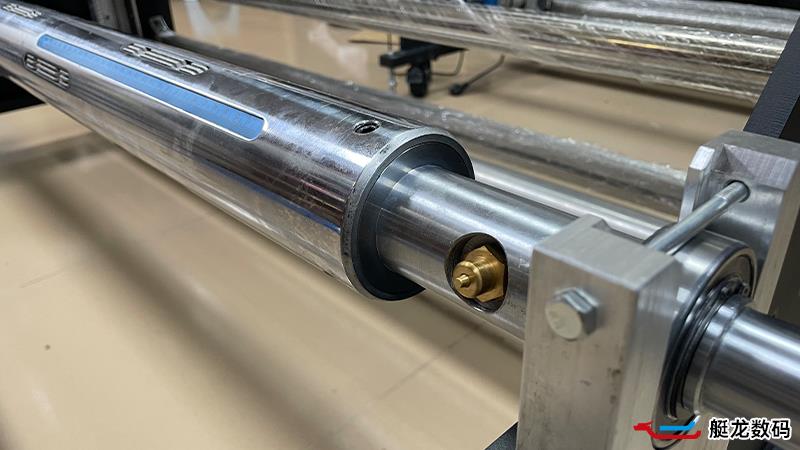

特种钢气涨轴

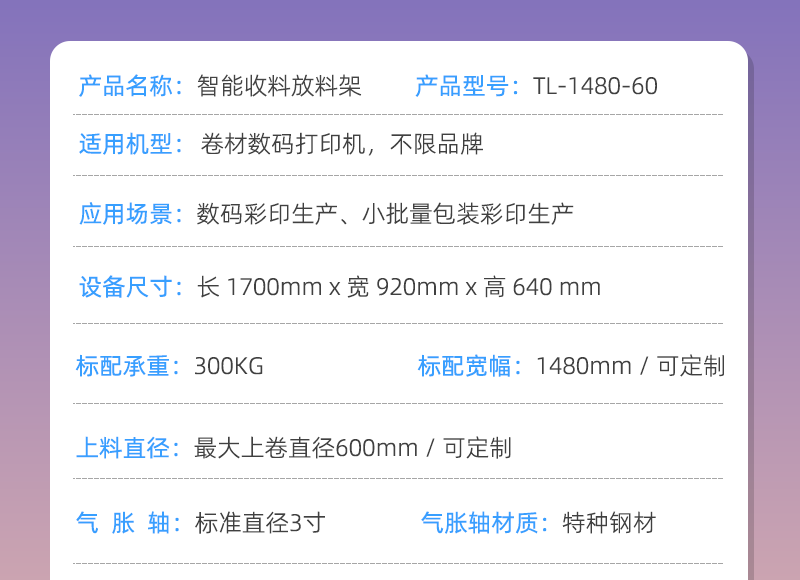

| Technical Specifications | |
|---|---|
| Device Name | Intelligent rewinding and feeding machine |
| Model | TL-1480-60 |
| Compatible Models | Roll to roll printers, cutting machines, Epson 9580 etc., regardless of brand |
| Application scenarios | Digital color printing production, used for feeding paper |

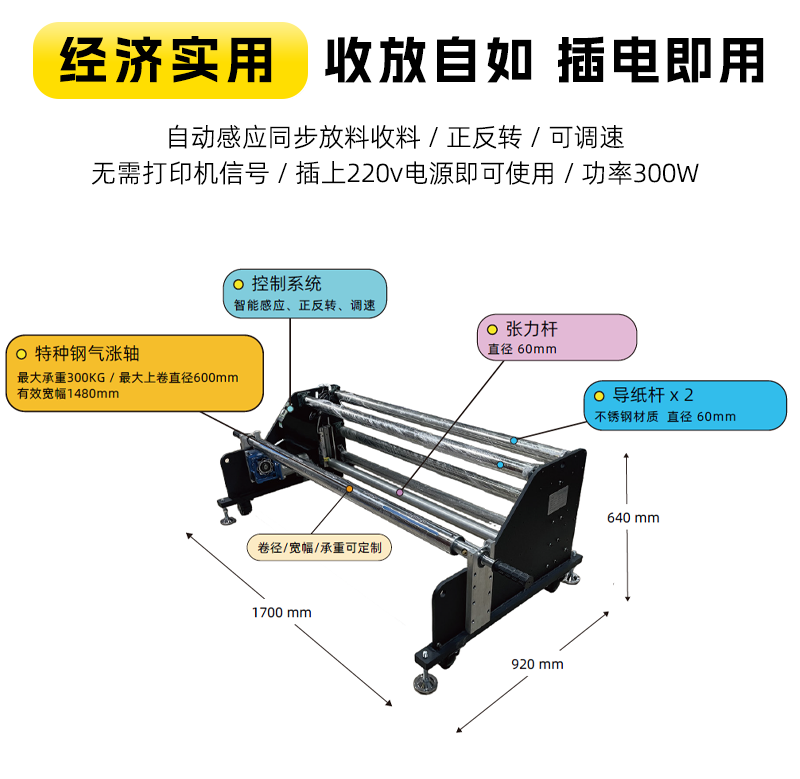

| Device dimensions | 1700mm x 920mm x 640mm (LWH) |
| Product weight | 180kg |
| Standard load-bearing capacity | 300kg / customizable |
| Effective width | 1480mm / customizable |
| Max Roll diameter | 600mm / customizable |
| Inflatable shaft | Standard diameter 3 inches / Inflatable shaft material: special steel |
| Sensor Function | Automatic sensing. No need to connect the printer circuit |
| Rotation direction | Forward and reverse |
| Speed control | Automatic |
| Rated voltage / Power | 220V,50Hz/60Hz,750w |

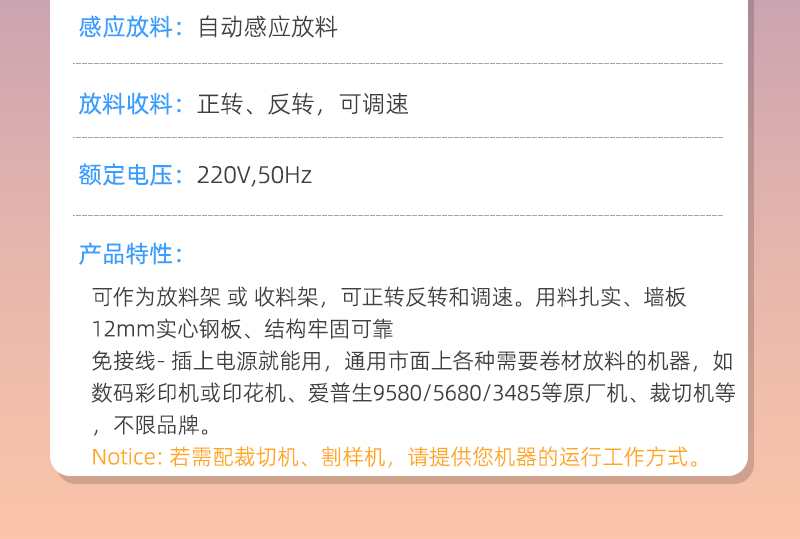

| Product Features | This machine can serve as material feeding machine, featuring forward and reverse rotation. It is built with robust materials, sturdy and reliable structure. Notice: If you want to pair it with your machine, please tell us how your machine works. |
