自动感应导纸、正反转放料收料、免接线插电即用

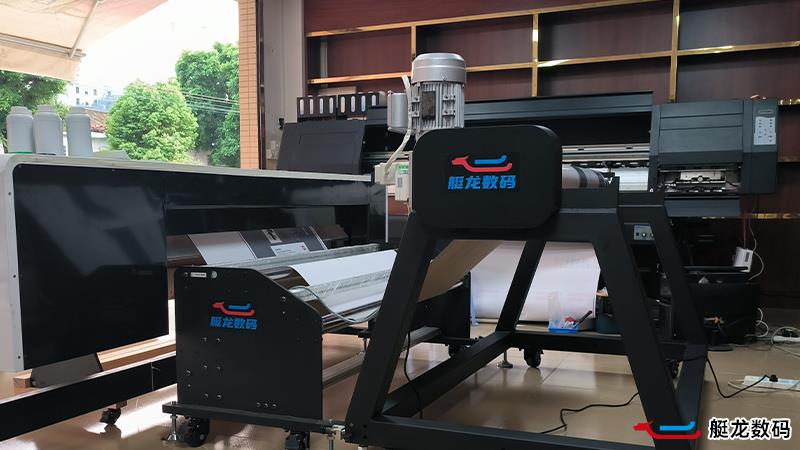

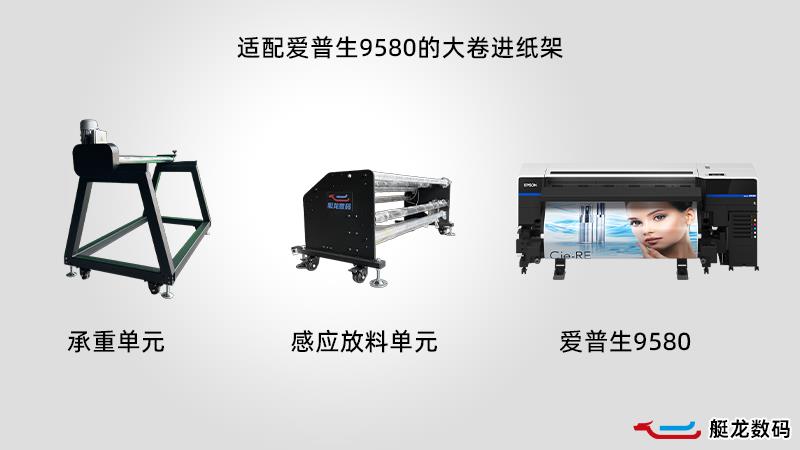

适配爱普生Epson 9580的自动感应放料架
爱普生9580的小卷进纸打印，可能无法满足一些朋友长时打印生产的需求，那可以选配我们这款独立的母卷放料架。该母卷送纸系统采用分体设计，只需简单的组装调试即可工作。最大可以承重两吨母卷原纸，与数码打印机器同步联动工作，具有牢固可靠、走纸平顺精确的优点，已在我司众多客户中稳定应用。
对于单量稳定、打印纸张较为固定，或者需要减少换料时间和频率的朋友，那么选配我们这款送纸架是非常不错的选择。
什么机型可以使用？
除了Epson 9580打印机，市面上只要是上卷材的数码彩印机都能使用，不限定品牌，类似国产机、爱普生原装机等，甚至其他非数码打印领域，需求符合，也可以使用这款卷放料架。

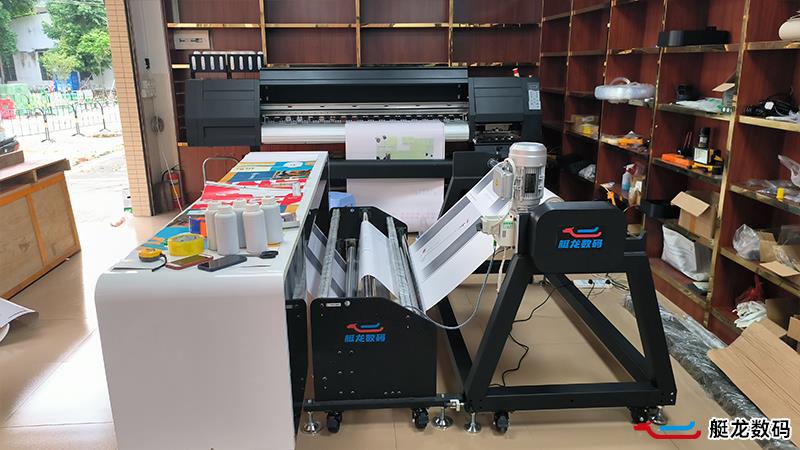

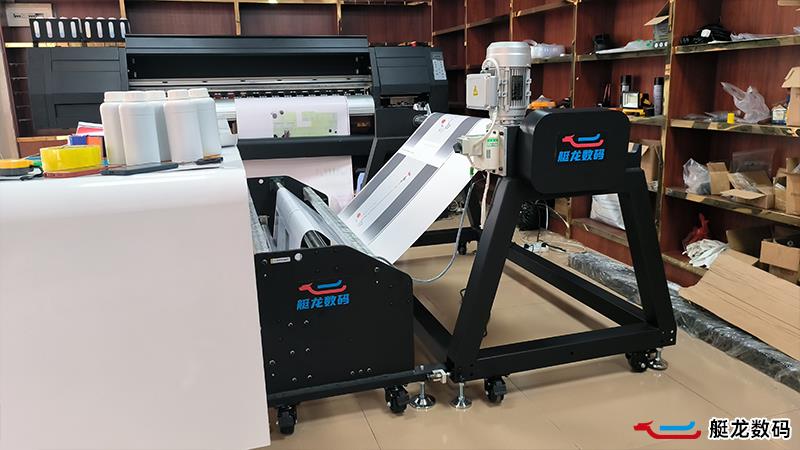

适配爱普生9580
适配国产彩印机

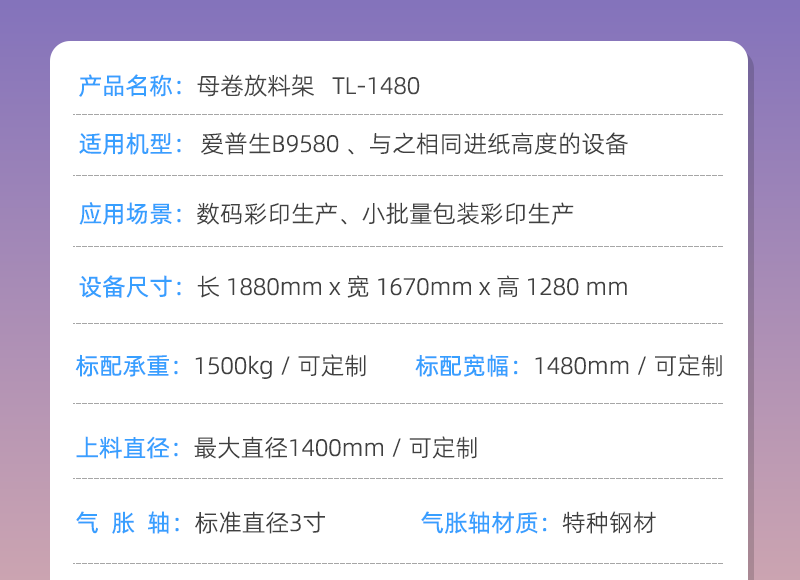

| Technical Specifications | |
|---|---|
| Device Name | Master roll paper feeding machine |
| Model | TL-1480-02 |
| Compatible Models | All roll to roll digital printers, Epson 9580, no brand restrictions |
| Application scenarios | Digital color printing production, used for feeding paper |

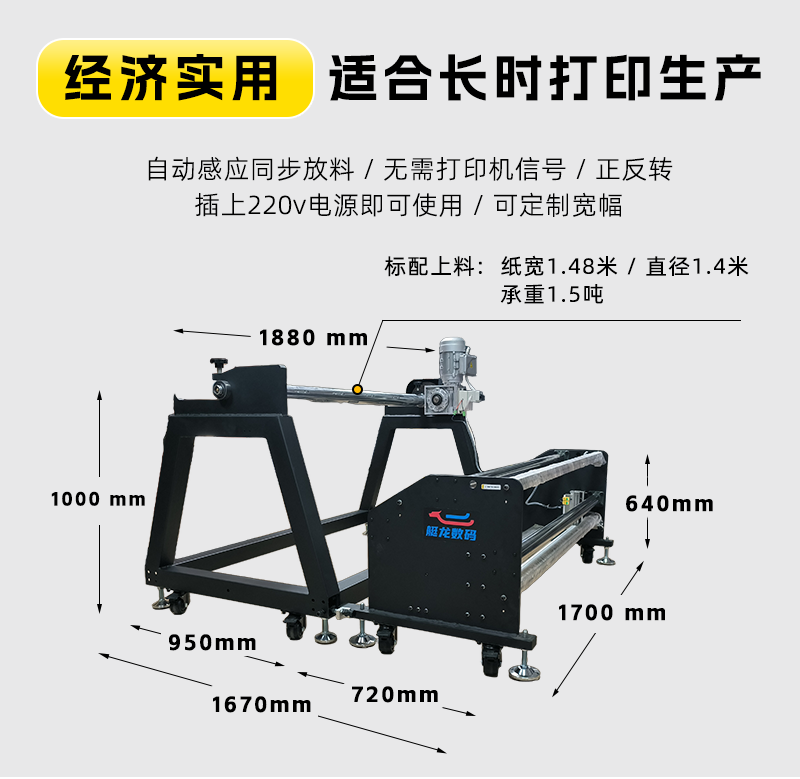

| Device dimensions | 1885mm x 1700mm x 1300mm (LWH) |
| Product weight | 300kg |
| Standard load-bearing capacity | 1500kg / customizable |
| Effective width | 1480mm / customizable |
| Max Roll diameter | 1400mm / customizable |

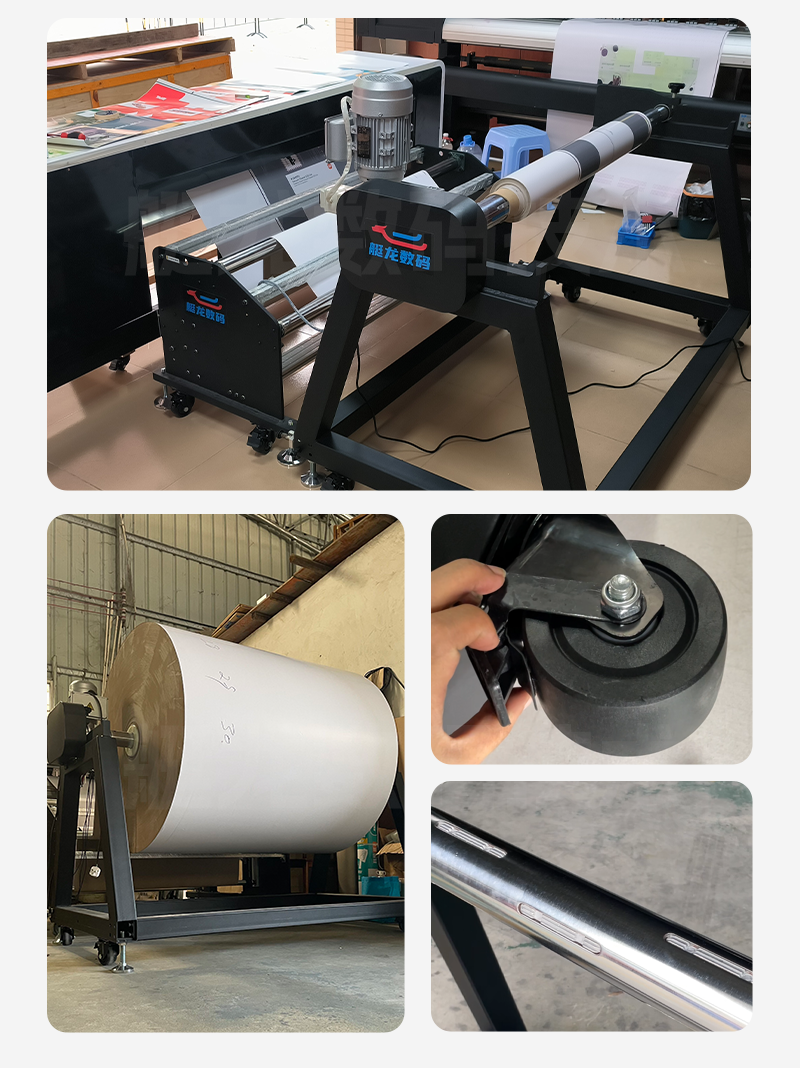

| Inflatable shaft | Standard diameter 3 inches / Inflatable shaft material: special steel |
| Roll lifting | Non automatic roll lifting, requires forklift |

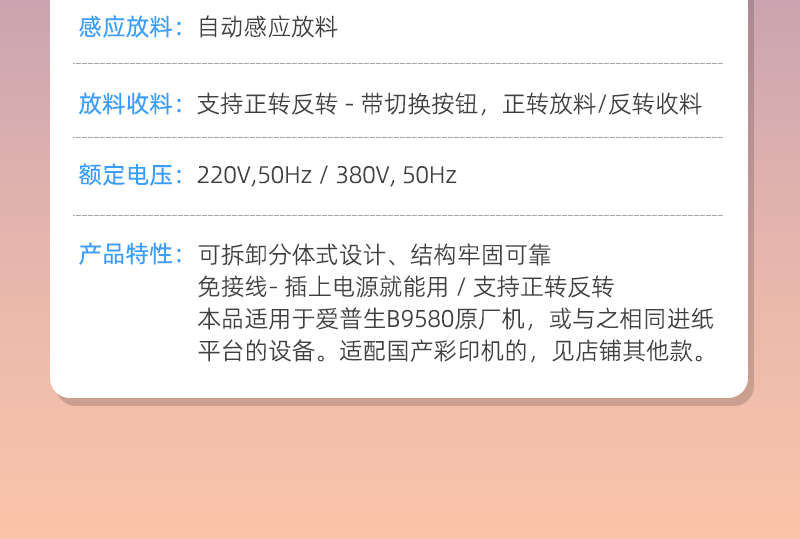

| Sensor Function | Automatic sensing. No need to connect the printer circuit |
| Rotation direction | Forward and reverse |
| Speed control | Automatic |
| Rated voltage / Power | 220V,50Hz/60Hz,750w |
| Product Features | This machine can serve as material feeding machine, featuring forward and reverse rotation. It is built with robust materials, sturdy and reliable structure. Notice: If you want to pair it with your machine, please tell us how your machine works. |
