自动感应导纸、正反转、调速、免接线插电即用
艇龙数码设备（佛山）有限公司推出的1米大卷径气涨轴自动放卷机，是适配数码印花、彩印卷材生产线的专用自动化配套设备，专为卷料加工场景优化设计。为生产线提质增效，是卷料加工产线的优选配套设备。

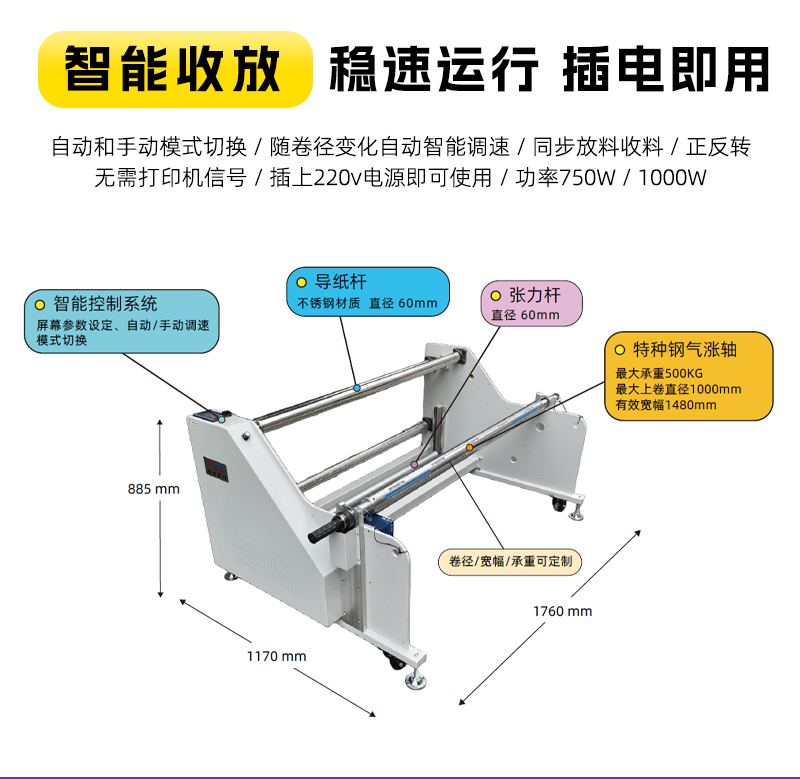

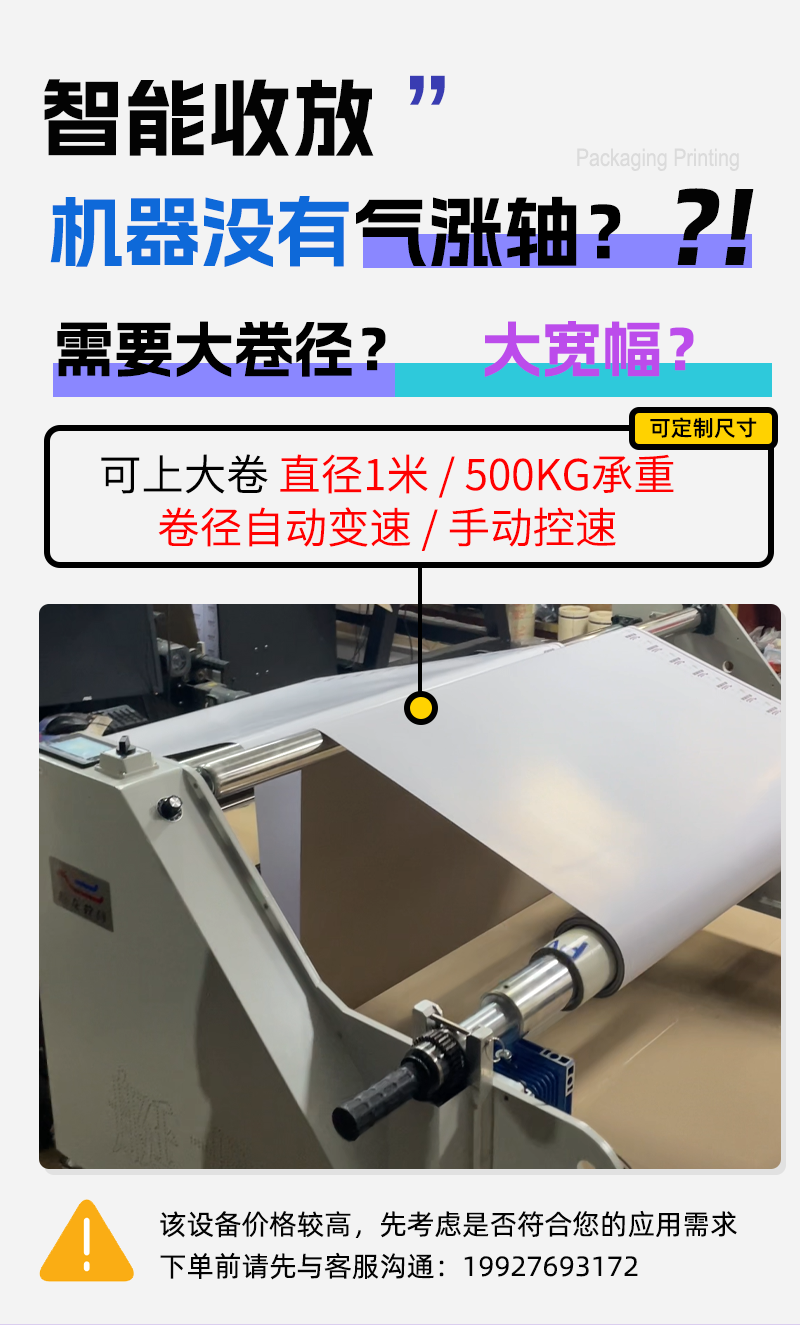

在硬件性能方面，这款放卷机具备出色的承载与运行能力，设备最大上卷直径可达1米，额定承重高达500KG，可满足大尺寸、大重量卷材的加工需求，适配绝大多数常规卷材生产工况。同时设备支持非标定制服务，包括宽幅、承重、卷径、速度乃至整体结构，可根据客户生产线的特殊规格、生产工况、设备适配需求进行个性化调整。

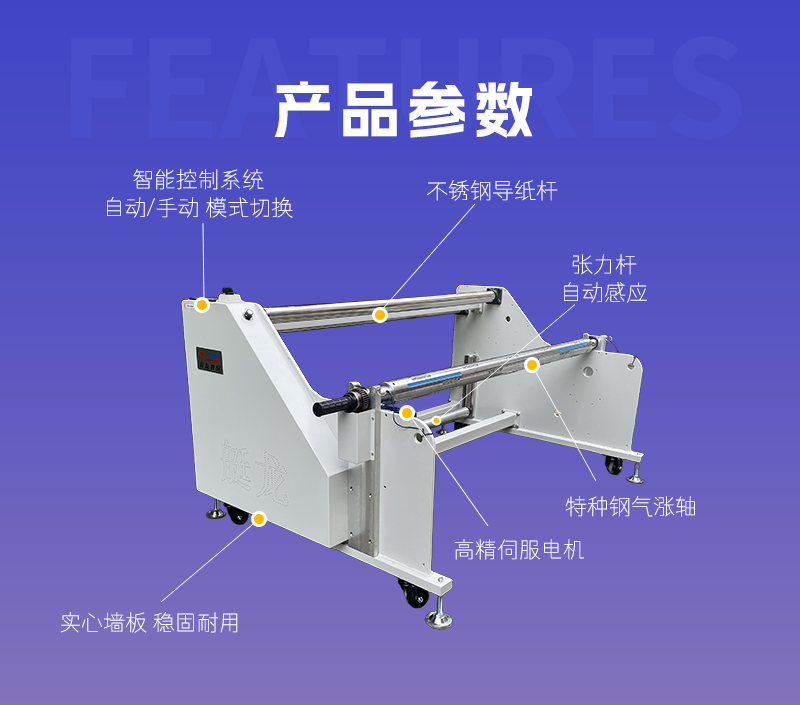

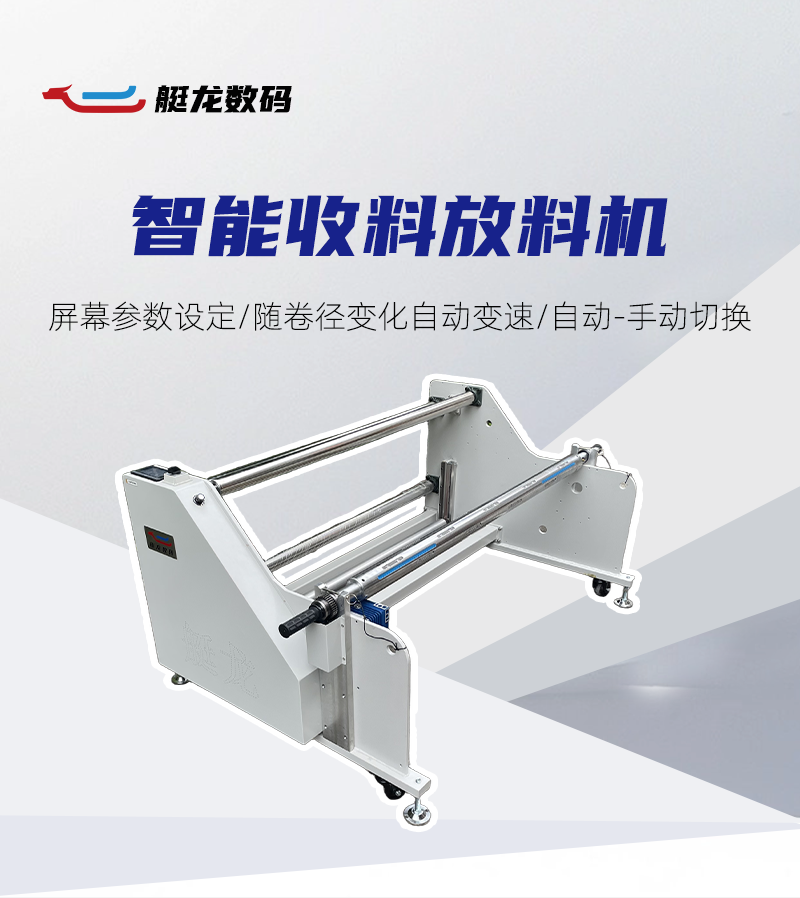

设备搭载全自动与手动双操作模式，可通过设备屏幕录入运行参数，系统可根据卷材卷径的实时变化智能自动变速，精准把控放卷速度
针对调试、检修、小批量试产等特殊场景，可切换手动模式，人工自主调控运行速度。
什么机型可以使用？

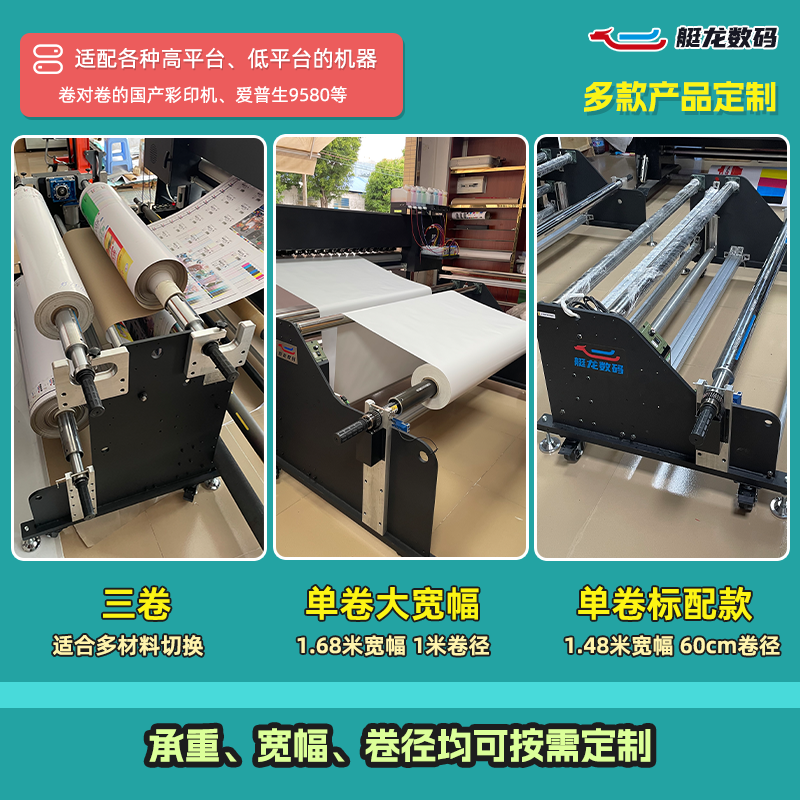

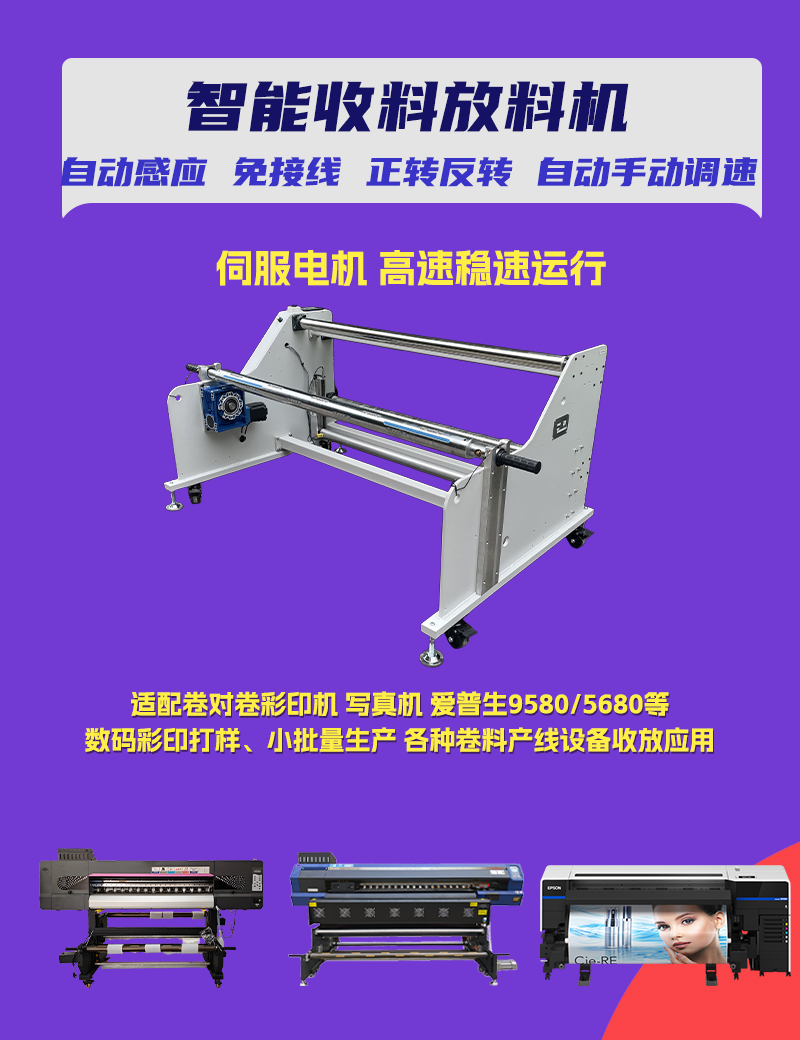

该放卷机采用免接线快速对接设计，适配卷对卷小批量数码彩印机、数码印花机、裁切机裁断机、Epson 9580等打印机，也广泛适用于各类卷料自动化产线，助力企业实现标准化、自动化生产，欢迎各界客户咨询合作。

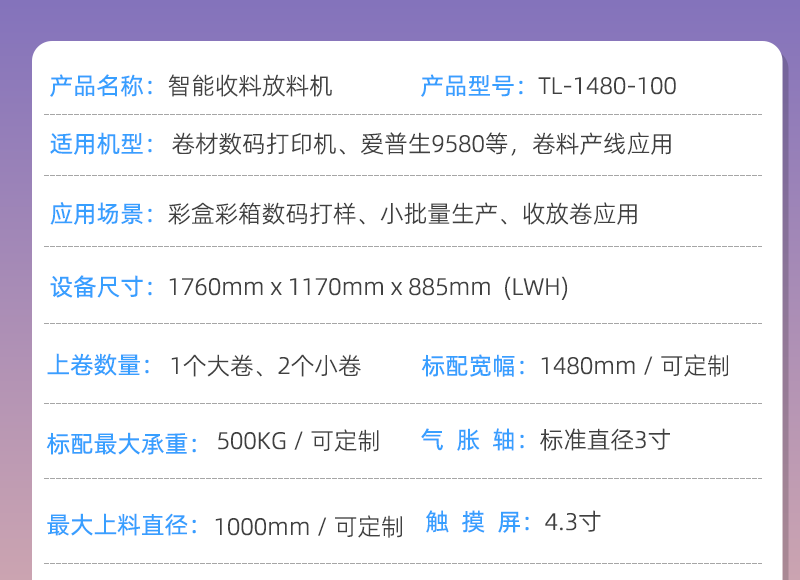

| Technical Specifications | |
|---|---|
| Device Name | Intelligent rewinding and feeding machine |
| Model | TL-1480-100 |
| Compatible Models | Roll to roll printers, cutting machines, fitting machine, production line equipment,etc. |
| Application scenarios | Digital color printing production, for high speed feeding or rolling materials |
| Device dimensions | 1960mm x 1170mm x 885mm (LWH) |
| Product weight | 250kg |
| Standard load-bearing capacity | 500kg / customizable |
| Effective width | 1480mm / customizable |
| Max Roll diameter | 1000mm / customizable |
| Inflatable shaft | Standard diameter 3 inches / Inflatable shaft material: special steel |

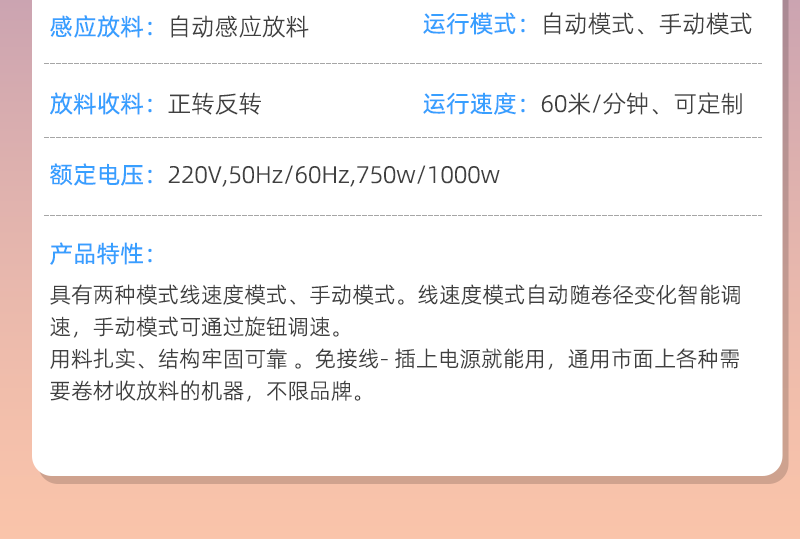

| Sensor Function | Automatic sensing. No need to connect the printer circuit |
| Rotation direction | Forward and reverse |
| Touch screen | 4.3 inches |
| Runing mode | Automatic mode / manual mode |
| Speed | 60 meters /min, customizable |
| Speed control | Automatic and Manual |
| Rated voltage / Power | 220V,50Hz/60Hz,750w/1000w |
| Product Features | It has two modes: linear speed mode and manual mode. The linear speed mode automatically adjusts the speed intelligently according to the change of roll diameter, while the manual mode can be adjusted through a knob. Notice: If you want to pair it with your machine, please tell us how your machine works. |
