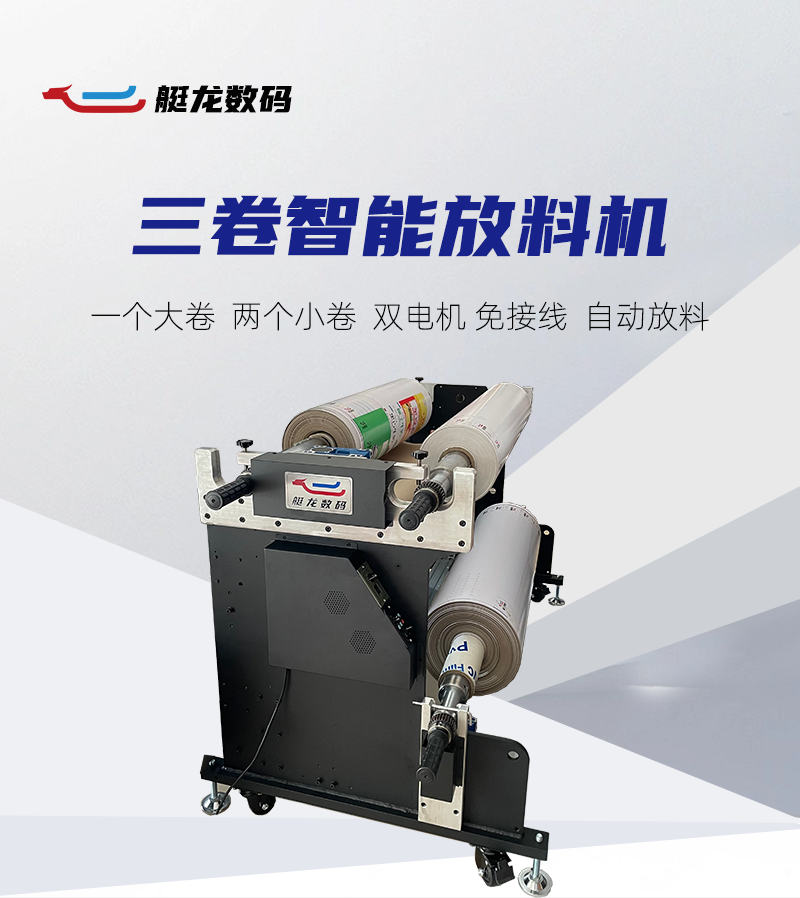

三卷齐上、双电机控制、自动感应导纸、正反转、调速、免接线插电即用

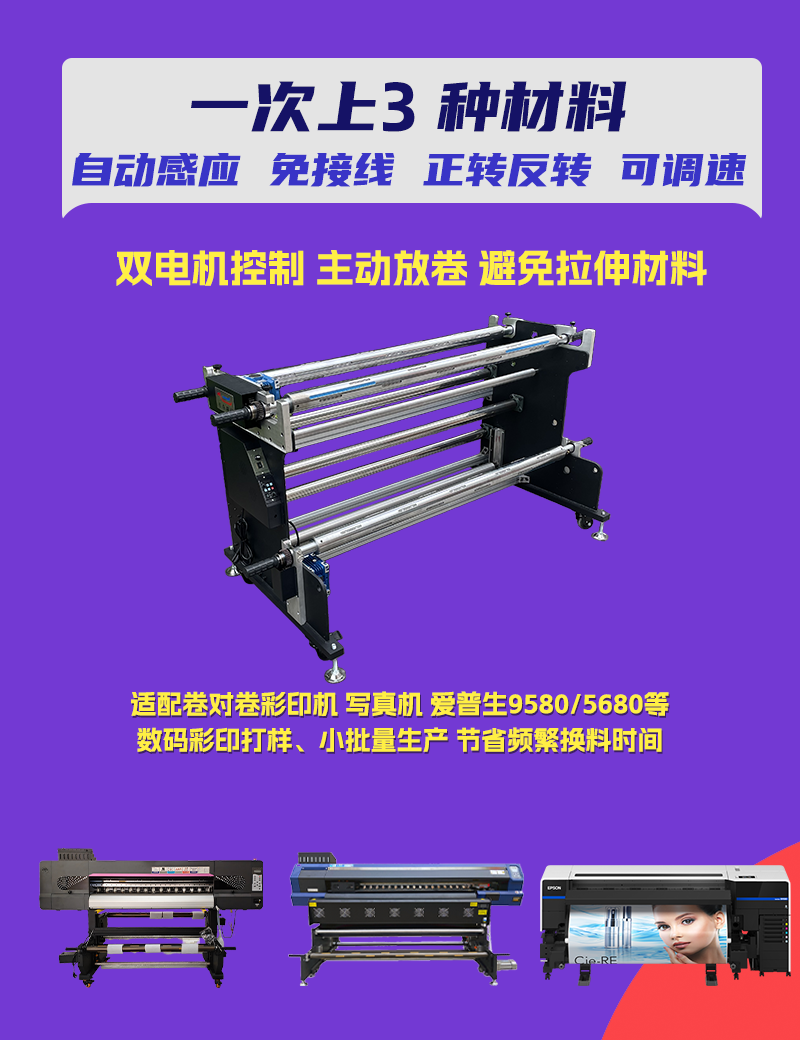

三种材料同时上，更方便切换材料，避免频繁换料。适合经常打印不同材料的应用。 适合数码打印放卷，正转反转和调速。用料扎实、结构牢固可靠 免接线- 插上电源就能用，通用市面上各种需要卷材放料的机器
什么机型可以使用？

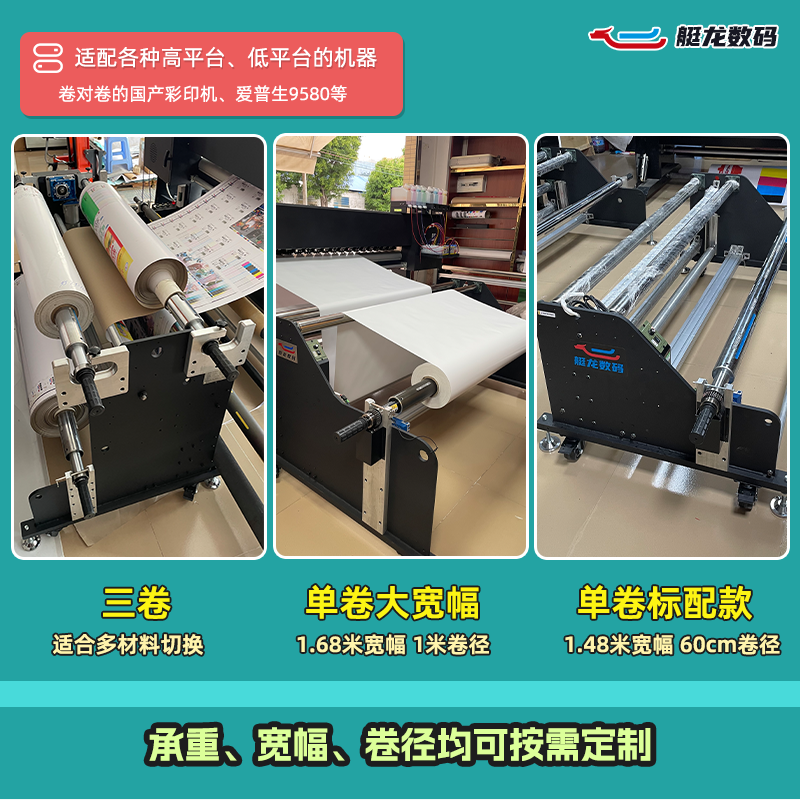

卷对卷小批量数码彩印机、数码印花机、裁切机裁断机、Epson 9580等打印机，市面上只要是上卷材的数码彩印机都能使用，不限定品牌，类似国产机、爱普生原装机等，甚至其他非数码打印领域，需求符合，也可以使用这款放卷收卷机设备。
Video
Technical Specifications

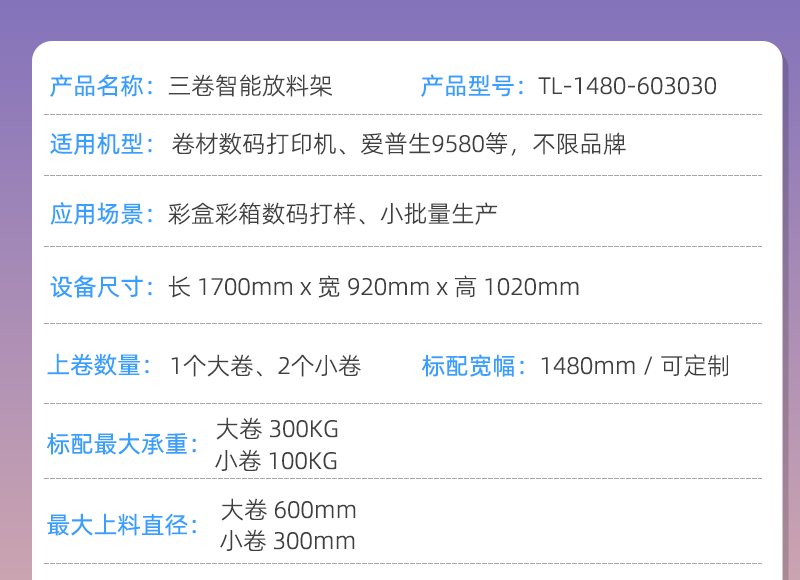

| Technical Specifications | |
|---|---|
| Device Name | Intelligent rewinding and feeding machine |
| Model | TL-1480-603030 |
| Compatible Models | Roll to roll printers, cutting machines, Epson 9580 etc., regardless of brand |
| Application scenarios | Digital color printing production, used for feeding paper |

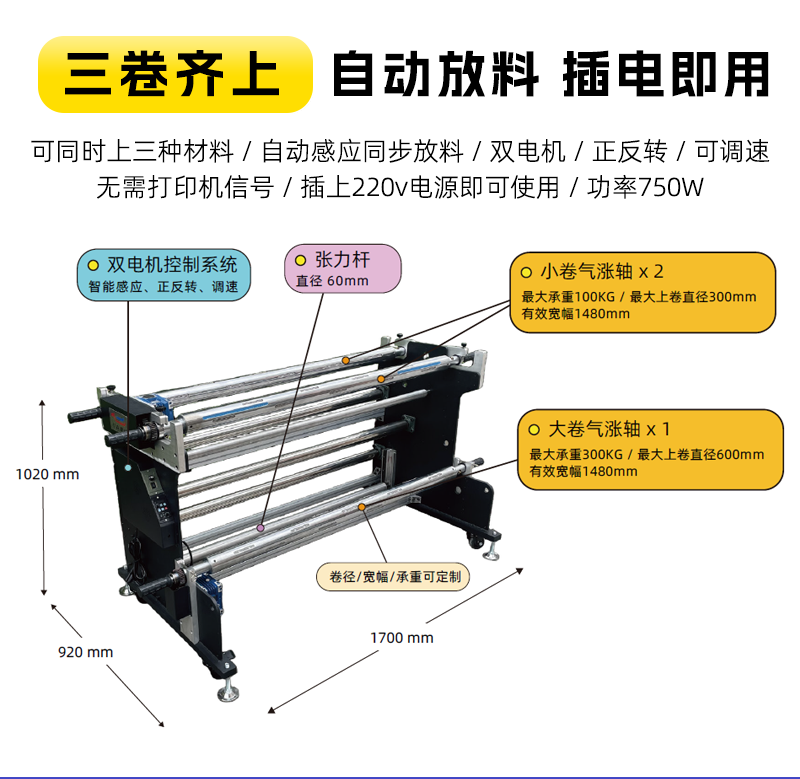

| Device dimensions | 1700mm x 920mm x 1020mm (LWH) |
| Product weight | 320kg |

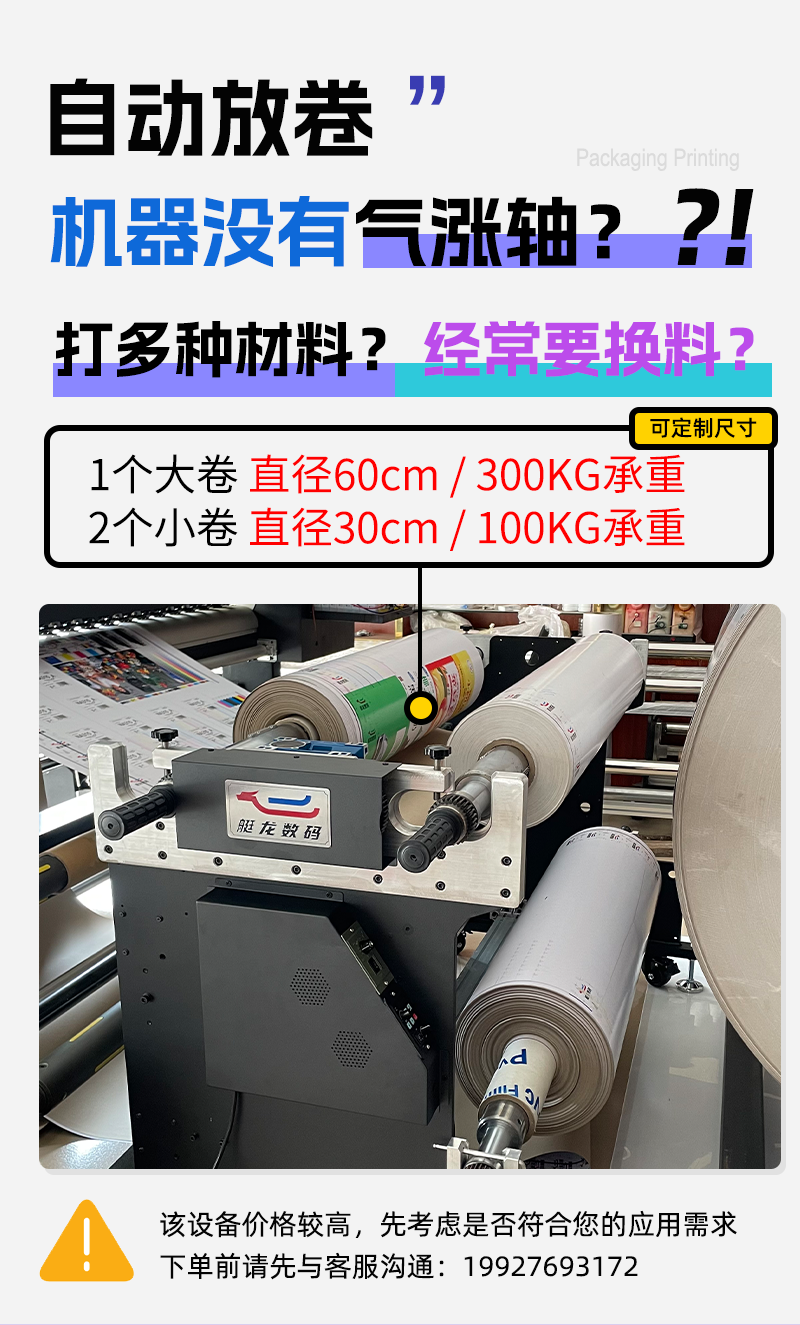

| Number of rolls | 1 x big roll, 2x small rolls |
| Standard load-bearing capacity | big roll: 500kg , small rolls: 300kg |
| Max Roll diameter | big roll: 600mm , small rolls: 300mm |
| Effective width | 1480mm / customizable |

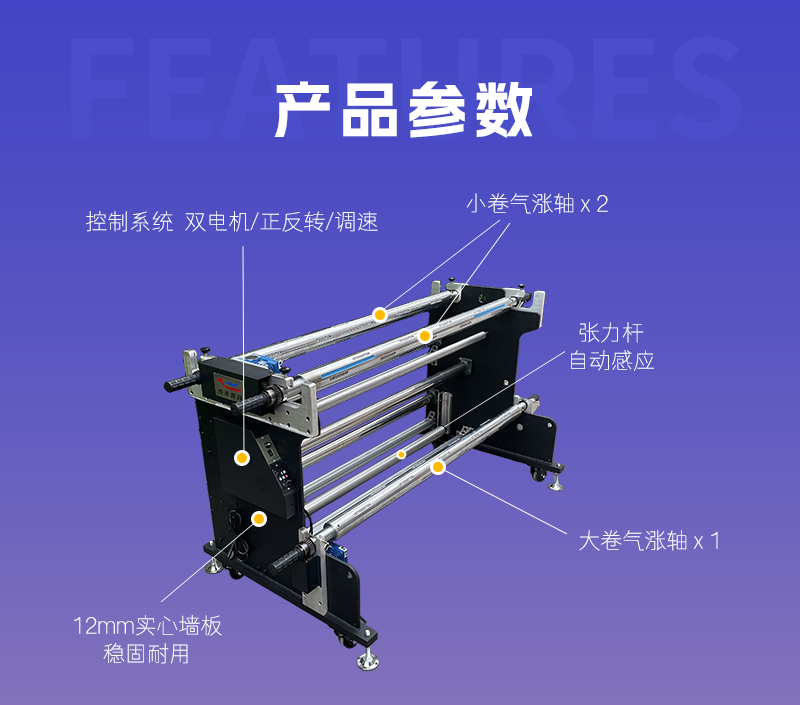

| Inflatable shaft | Standard diameter 3 inches / Inflatable shaft material: special steel |

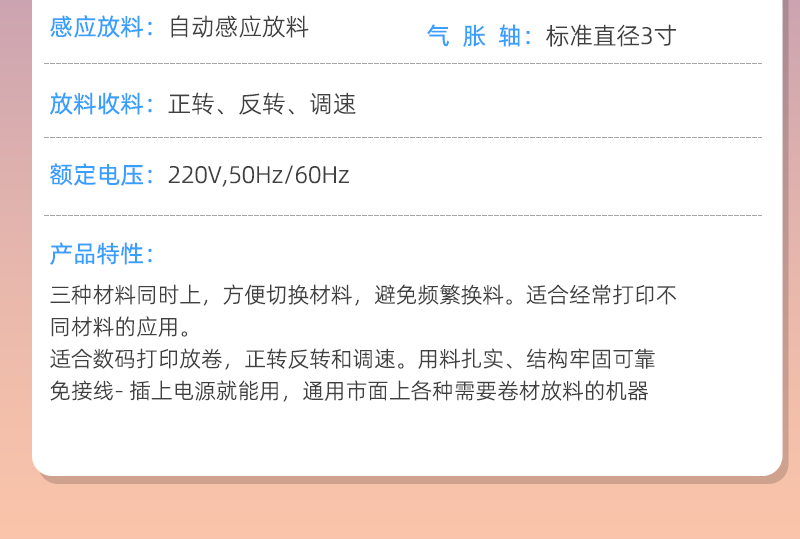

| Sensor Function | Automatic sensing. No need to connect the printer circuit |
| Rotation direction | Forward and reverse |
| Speed control | Automatic |
| Rated voltage / Power | 220V,50Hz/60Hz,750w |
| Product Features | Load 3 rolls , avoids frequent material changes. Suitable for applications that frequently print different materials. Notice: If you want to pair it with your machine, please tell us how your machine works. |
Introduction
