自动感应导纸、正反转、调速、免接线插电即用

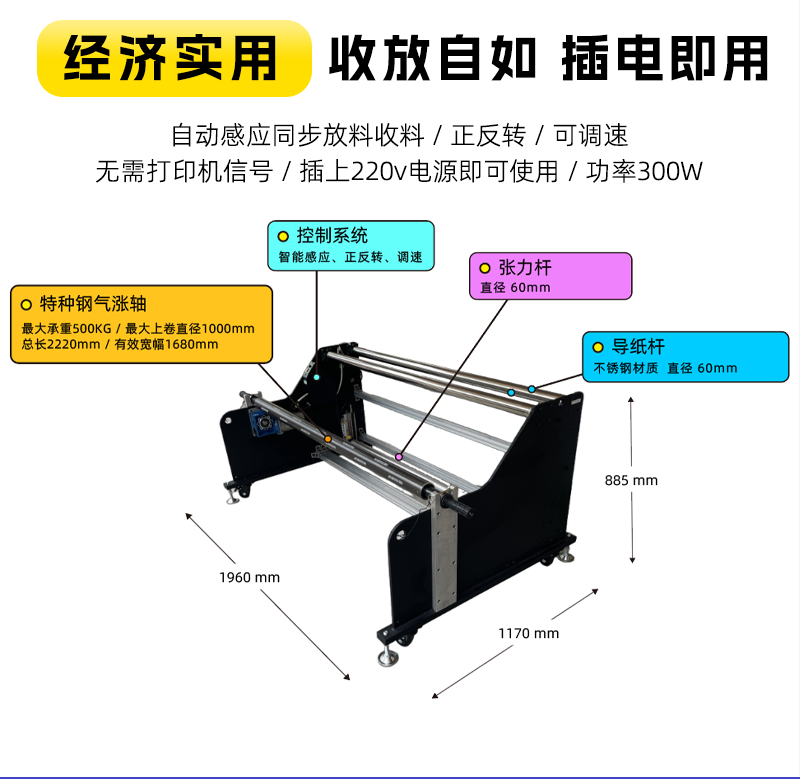

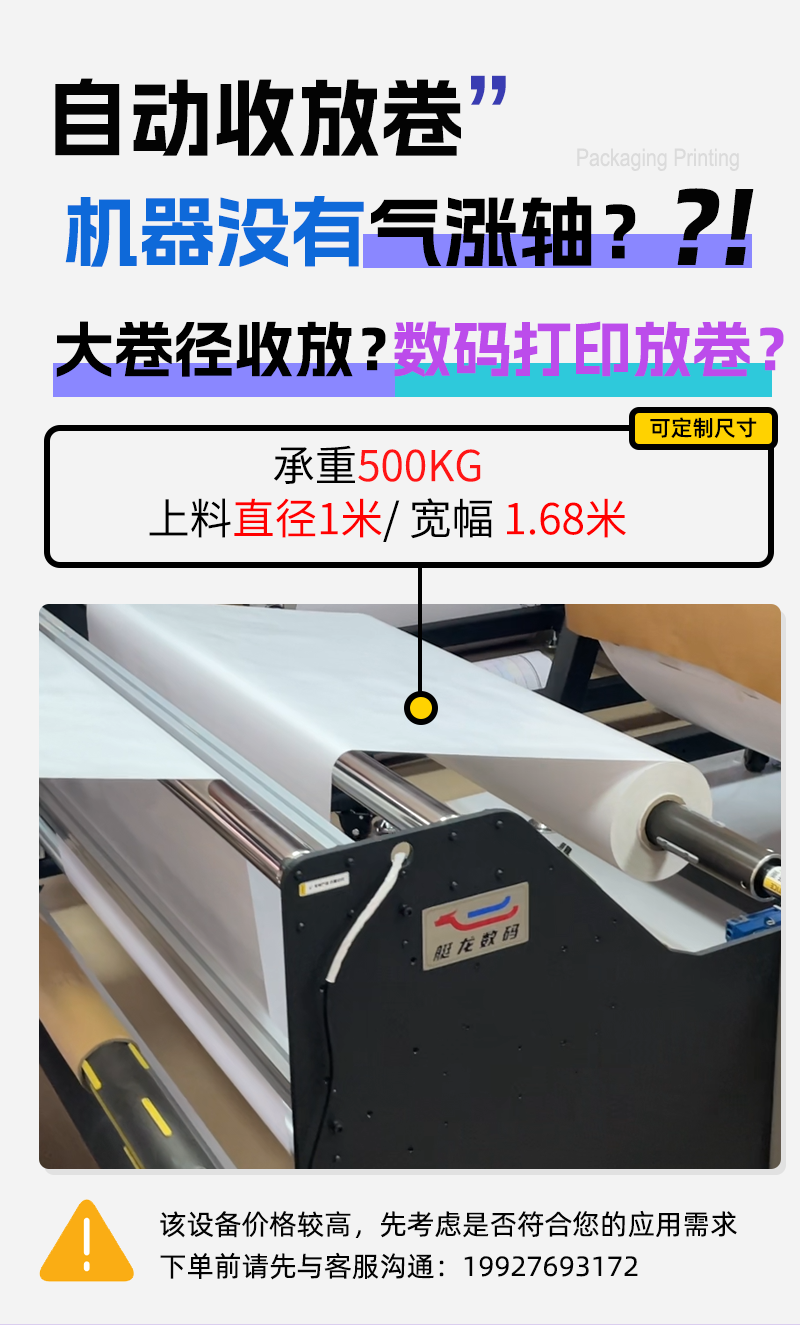

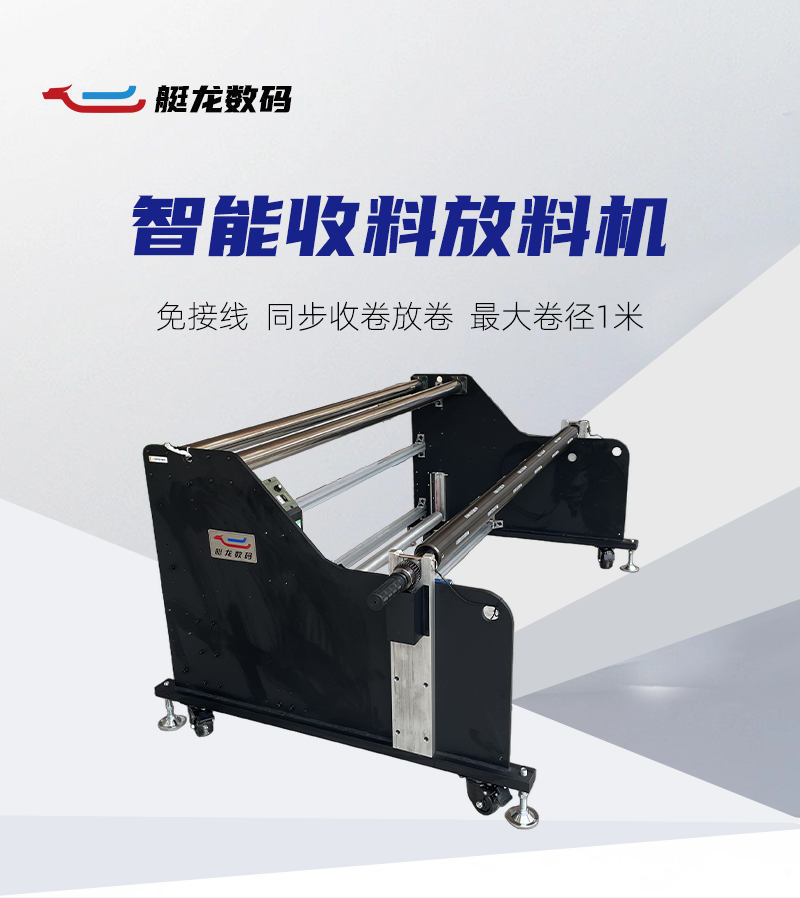

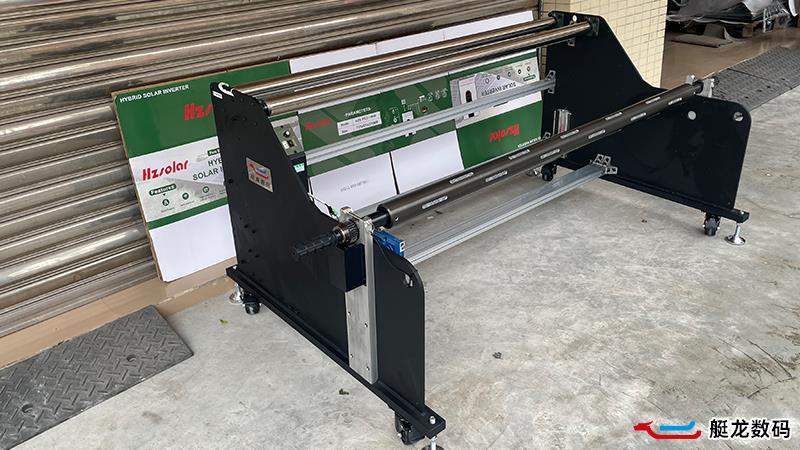

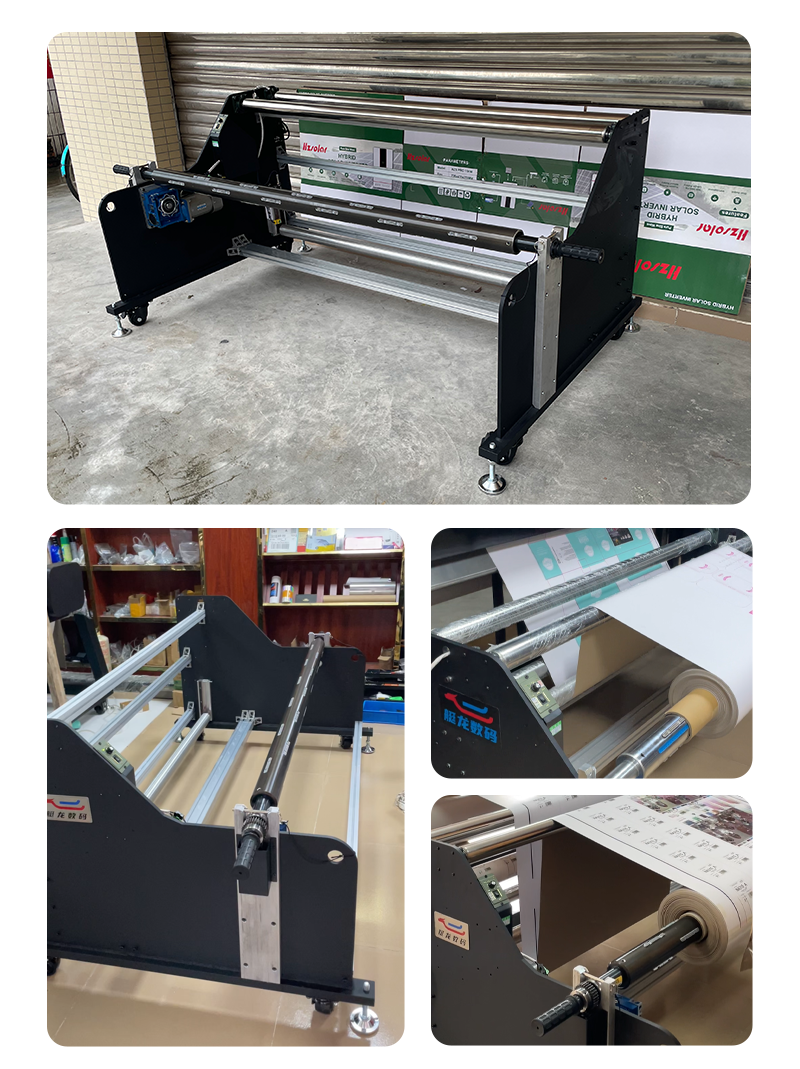

这款智能两用放收料架，可灵活切换放料、收料两种使用模式。设备最大卷料直径可达 1000mm，额定承重 500kg。本机坚固结构，性能稳定耐用，整体扎实稳固；搭配高规格特种钢气涨轴，直线度优异，抗压、抗弯性能出众，可满足长时间连续生产作业需求。

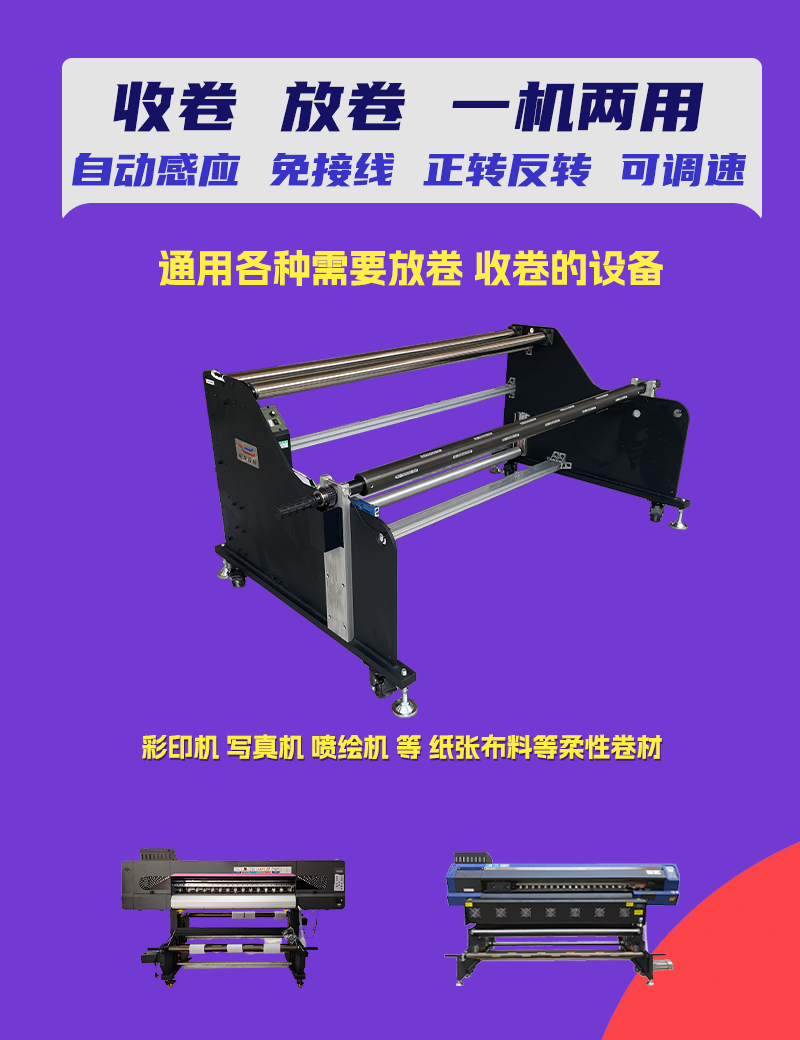

什么机型可以使用？

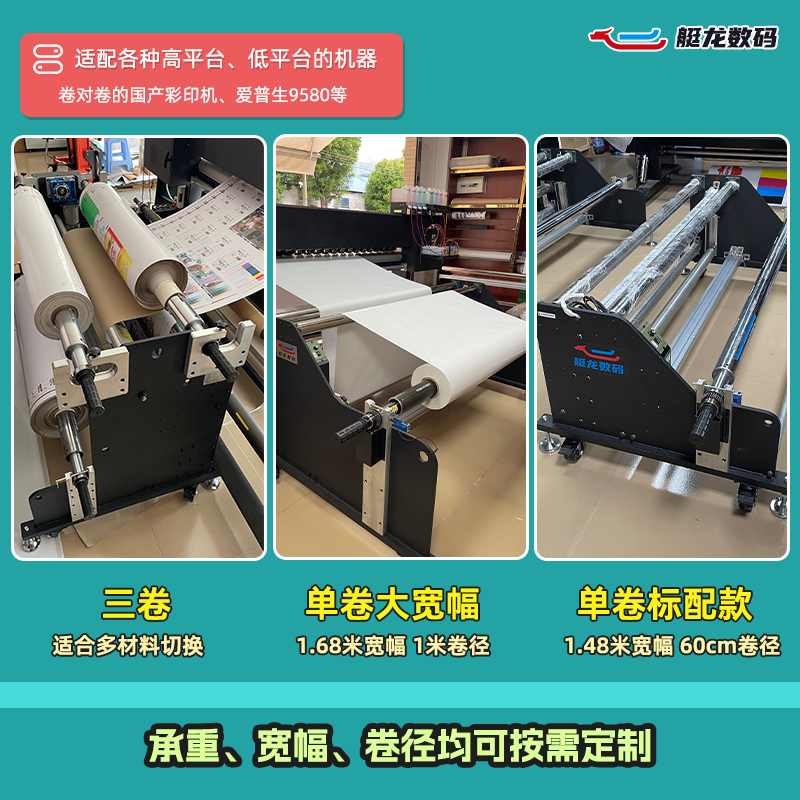

卷对卷小批量数码彩印机、数码印花机、裁切机裁断机、Epson 9580等打印机，市面上只要是上卷材的数码彩印机都能使用，不限定品牌，类似国产机、爱普生原装机等，甚至其他非数码打印领域，需求符合，也可以使用这款放卷收卷机设备。

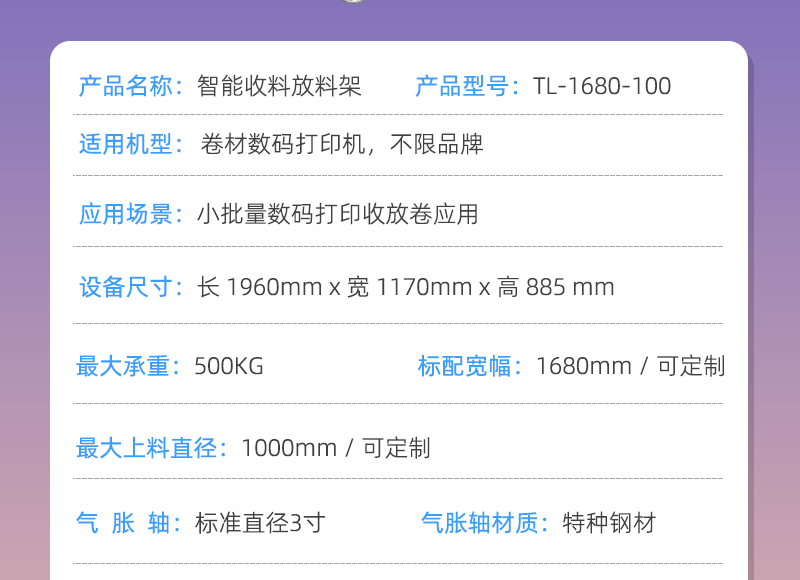

| Technical Specifications | |
|---|---|
| Device Name | Intelligent rewinding and feeding machine |
| Model | TL-1680-100 |
| Compatible Models | Roll to roll printers, cutting machines, Epson 9580 etc., regardless of brand |
| Application scenarios | Digital color printing production, used for feeding paper |
| Device dimensions | 1960mm x 920mm x 885mm (LWH) |
| Product weight | 180kg |
| Standard load-bearing capacity | 500kg / customizable |
| Effective width | 1680mm / customizable |
| Max Roll diameter | 600mm / customizable |

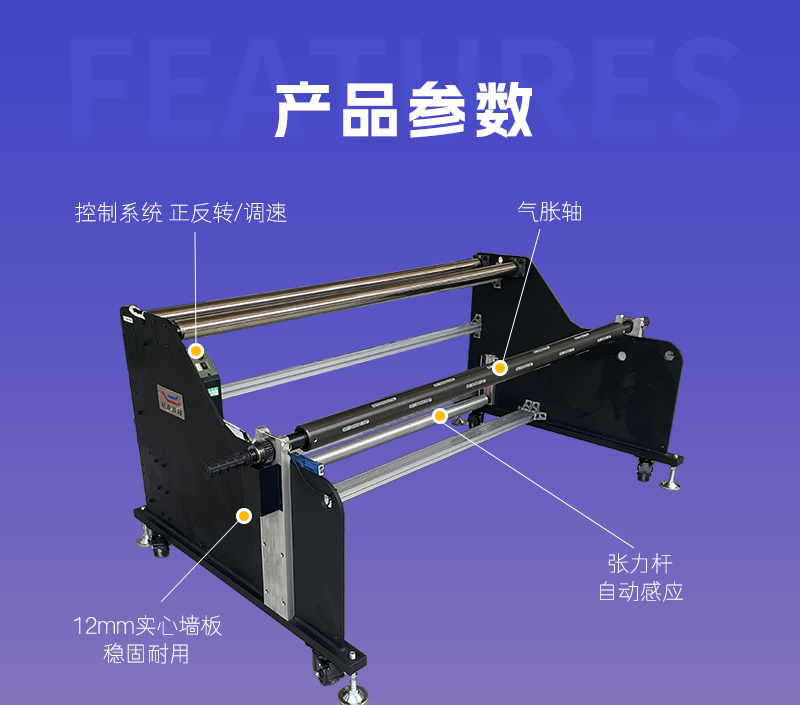

| Inflatable shaft | Standard diameter 3 inches / Inflatable shaft material: special steel |

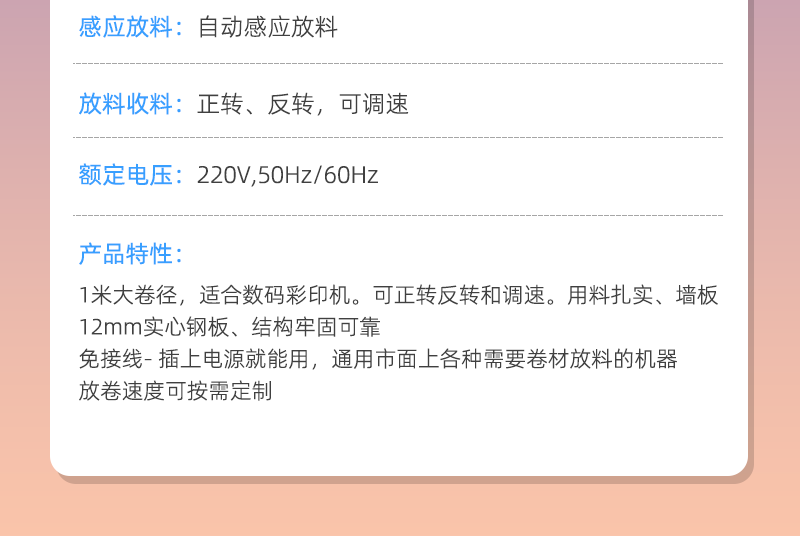

| Sensor Function | Automatic sensing. No need to connect the printer circuit |
| Rotation direction | Forward and reverse |
| Speed control | Automatic |
| Rated voltage / Power | 220V,50Hz/60Hz,750w |
| Product Features | This machine can serve as either a material unwinder or rewinder, featuring forward rotation, reverse rotation and speed regulation. Notice: If you want to pair it with your machine, please tell us how your machine works. |
